FD30 fire-rated steel curtain wall system provides up to 30 minutes of certified fire protection
High-strength galvanized steel framework ensures excellent structural stability and durability
Fire-resistant ceramic glass allows maximum natural light transmission while enhancing fire safety
Designed to prevent the spread of flames, heat, and smoke between building zones
Slim-profile steel mullions create a modern, transparent architectural appearance
Mineral wool insulation and fire-rated components improve thermal resistance during fire exposure
Maintains visibility and openness without compromising passive fire protection requirements
Precision-engineered system delivers reliable performance in commercial and public buildings
Powder-coated steel finish provides corrosion resistance and long-term durability
Suitable for office buildings, hotels, hospitals, shopping malls, airports, educational facilities, and public infrastructure projects
Available in custom dimensions, glazing specifications, frame finishes, and project-specific configurations
Complies with modern building fire safety requirements while supporting contemporary architectural designs
Ideal for architects, contractors, developers, distributors, and large-scale commercial construction projects
Specification Category | Details & Parameters |
|---|---|
Product Name | FD30 Steel-Frame Fire Rated Curtain Wall System |
Fire Rating | FD30 (Provides at least 30 minutes of fire integrity and insulation) |
Frame Material | High-strength galvanized steel / Stainless steel (Door leaf steel plate thickness typically 1.0mm-1.2mm, door frame 1.5mm) |
Glass Configuration | Fire-rated transparent ceramic glass / Fire-rated wired glass (Supports large-area light-transmitting design) |
Internal Filling | High-density mineral wool / Aluminum silicate refractory fiber (Mineral Door Core) |
Surface Treatment | RAL color series powder coating / Hot-dip galvanizing (Customization supported) |
Sealing System | Heat-expanding fire seals (Intumescent seals) and smoke seals |
Hardware Accessories | Standard fire-rated heavy-duty hinges, automatic door closer, Panic Bar, fire-rated flush bolts |
Certification Standards | Complies with BS EN 1634-1, UL 10C, CE, WHI, and other international fire safety standards |
Opening Method | Single / Double open, Swing Inward / Outward |
Application Scenarios | Commercial building lobbies, stairwells, corridors, hotels, hospitals, and high-rise building escape routes |
Our FD30 curtain wall system is designed to redefine the boundaries of commercial fire safety. By integrating cutting-edge materials with refined engineering, this system delivers unparalleled performance for demanding architectural environments. The precision-crafted components work in perfect harmony to provide a reliable, aesthetically pleasing barrier that enhances both the safety and the long-term value of your property.
Unmatched Structural Stability: The heavy-duty steel framework resists warping and buckling even when subjected to extreme thermal stress, ensuring the structural envelope remains completely intact.

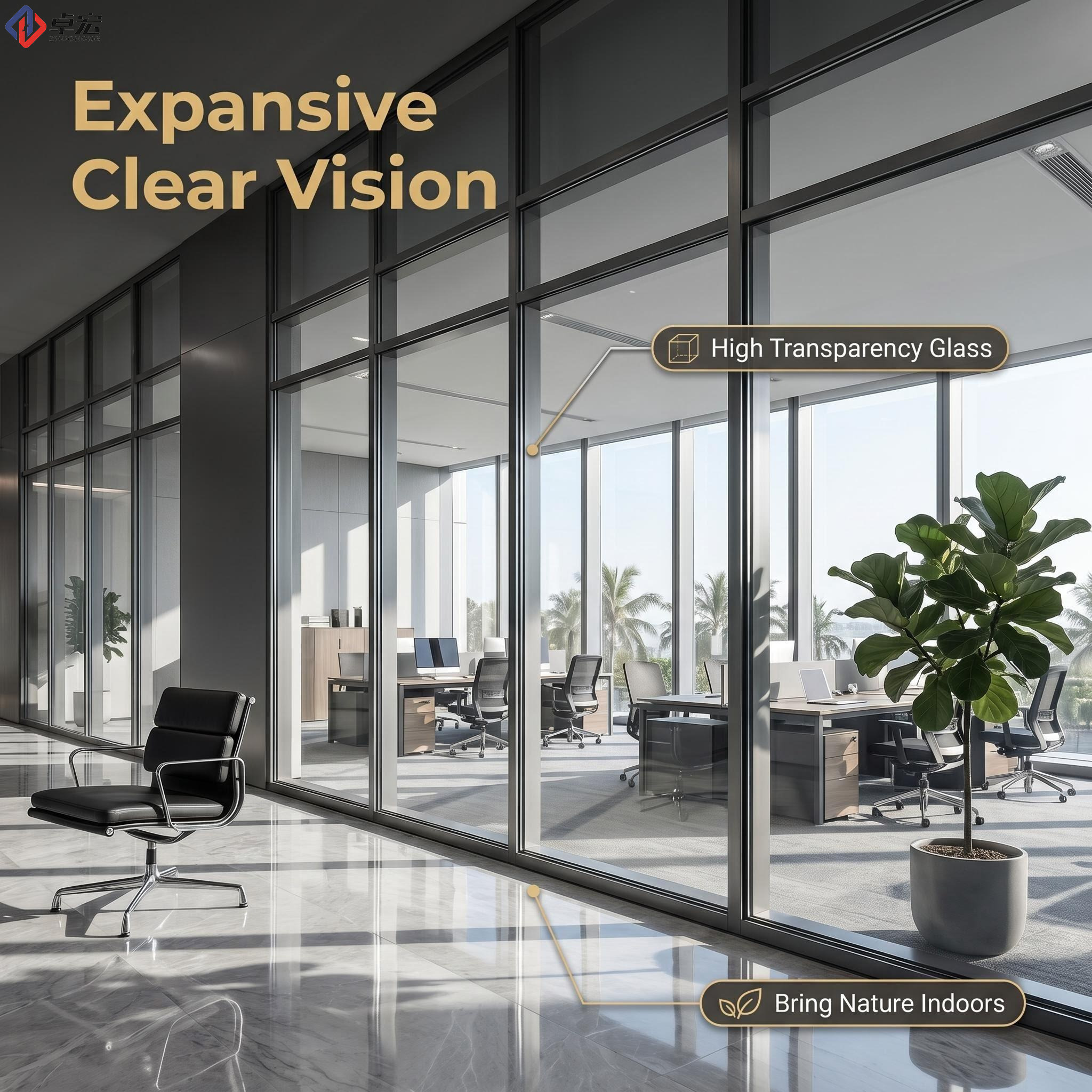

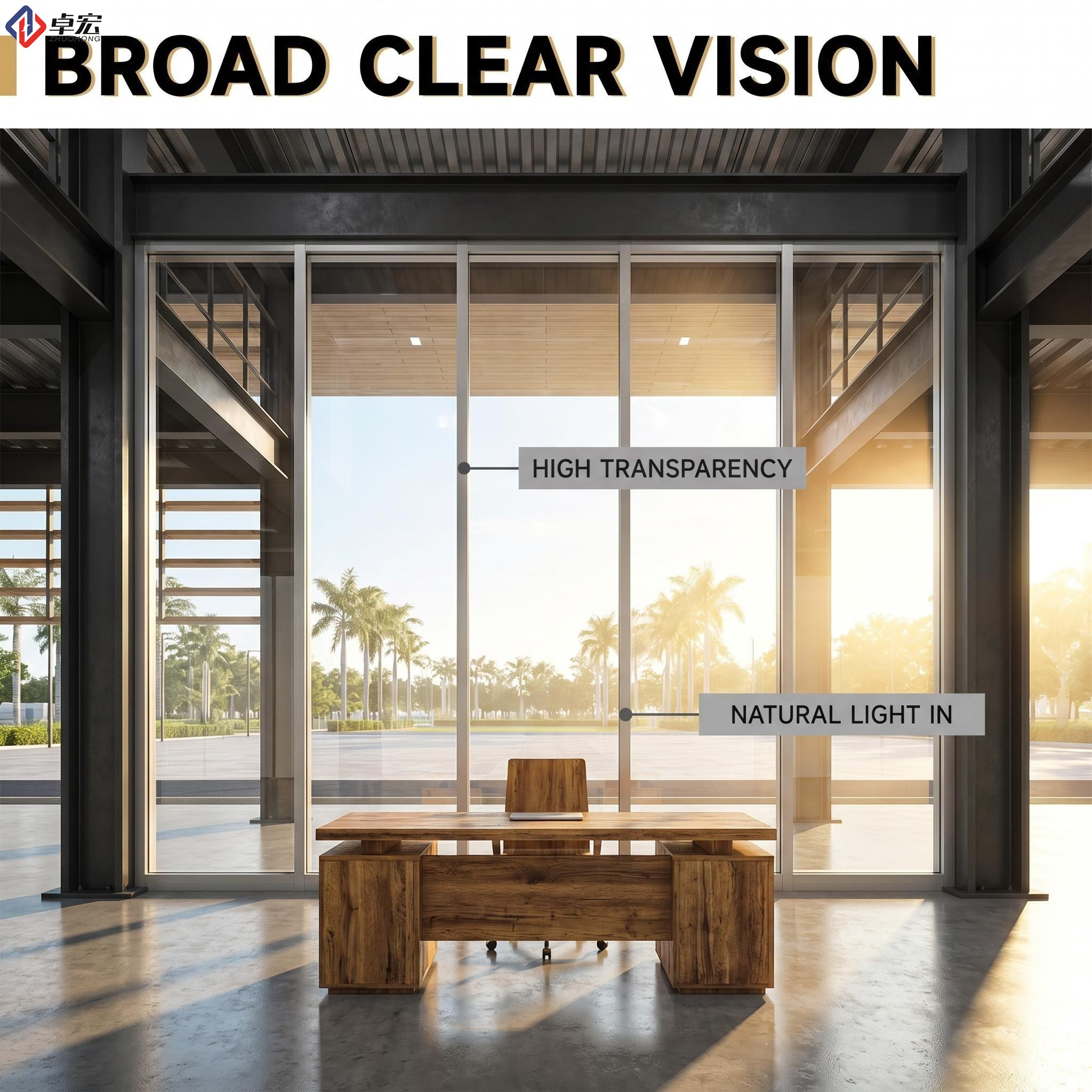

Crystal Clear Visibility: Utilizing advanced transparent ceramic glass, the system allows maximum light transmission, eliminating the dark, enclosed feeling often associated with traditional fire barriers.
Acoustic Dampening Properties: Beyond fire protection, the dense mineral core and tight sealing mechanisms significantly reduce noise transmission, creating a quieter, more focused environment for building occupants.
Corrosion Resistance: The hot-dip galvanized foundation paired with premium powder coating ensures the frames withstand high-humidity environments and rigorous daily wear without rusting or degrading.
Seamless Integration: Designed to align flush with surrounding architectural elements, it offers a clean, uninterrupted visual line that complements modern minimalist designs.
Navigating the complex landscape of local fire safety regulations requires solutions that are rigorously tested and universally recognized. This system is engineered to eliminate compliance hurdles, ensuring your architectural projects pass stringent safety inspections with absolute confidence. The presence of authentic certification labels provides immediate visual proof of compliance to inspectors, granting peace of mind to project stakeholders.
Global Standard Adherence: Fully compliant with rigorous international benchmarks including UL 10C, CE, WHI, and BS EN 1634-1.
Guaranteed FD30 Performance: Delivers a verified 30 minutes of fire integrity, maintaining a solid, unyielding barrier against raging flames.
Advanced Smoke Control (FD30S): Tested to restrict the passage of toxic smoke, meeting the critical "S" designation for comprehensive life safety.
Streamlined Approval Process: Utilizing pre-certified systems drastically reduces the time and administrative burden associated with securing building permits and occupancy certificates.
The foundation of any reliable fire barrier lies in its material composition. We utilize only the highest grade components to forge a system that refuses to yield under catastrophic conditions. When exposed to temperatures exceeding 800 degrees Celsius, ordinary materials warp and collapse. Our engineered solution maintains its precise dimensional tolerances, offering a steadfast shield that protects the structural core of your facility.

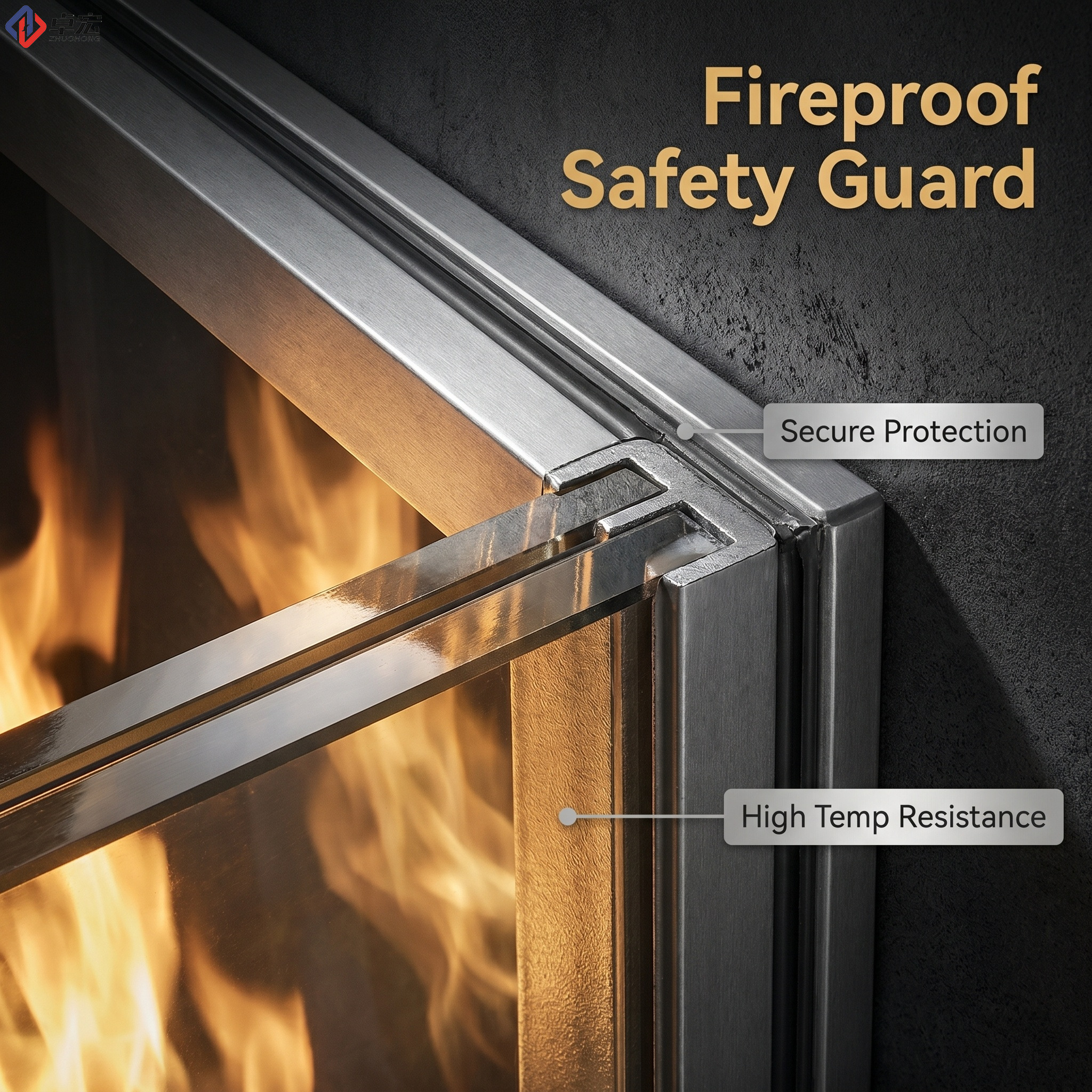

Reinforced Steel Profiles: Constructed from 1.5mm thick galvanized steel frames and 1.0mm-1.2mm door leaves, providing immense physical security and impact resistance.
Ceramic Glass Technology: The specialized fire-rated transparent ceramic glass absorbs massive thermal shock without shattering, retaining its solid state during a severe blaze.
Thermal Insulation Core: Packed with high-density mineral wool and aluminum silicate refractory fibers, the core actively dissipates heat, keeping the non-fire side at safer temperatures.
Deformation Resistance: The rigid steel architecture is specifically calculated to prevent twisting or bowing, ensuring doors remain operable and seals stay perfectly aligned during an emergency.
In the event of a fire, toxic smoke inhalation poses a far greater threat to human life than the flames themselves. This curtain wall system is equipped with an intelligent, dual-action sealing network designed to instantly react to environmental changes. By creating an airtight and smoketight envelope, the system secures evacuation routes, granting occupants the critical minutes needed to escape unharmed.
Intumescent Expansion Technology: Concealed fire seals remain dormant until exposed to high heat, at which point they rapidly expand to fill every microscopic gap between the frame and the glass.
Cold Smoke Isolation: Perimeter smoke seals actively block the insidious spread of low-temperature toxic fumes during the initial, smoldering phases of a fire.
Draft Reduction: The precision-engineered seals also serve to eliminate everyday drafts, contributing to the building's overall HVAC efficiency and climate control.
Odor and Toxin Barrier: Effectively prevents the migration of hazardous chemical odors generated by burning synthetic materials in adjacent rooms.
A fire-rated door is only as effective as its weakest component, which is why our hardware ecosystem is strictly curated and fire-tested as a unified assembly. Every hinge, lock, and closer is engineered to endure extreme thermal environments while functioning flawlessly. This ensures that in the chaos of an emergency, the mechanical elements perform their life-saving duties automatically and reliably.
Positive Latching Mechanism: Fire-rated flush bolts and heavy-duty locks ensure the door securely latches upon closing, preventing the intense pressure of a fire from blowing the door open.
Automatic Door Closers: Calibrated to provide consistent closing force, guaranteeing the door firmly shuts behind fleeing occupants to re-establish the fire barrier.
Intuitive Panic Bars: Ergonomically designed escape push bars allow for instantaneous, hands-free egress, crucial for high-traffic corridors and panicked crowds.
Heavy-Duty Bearing Hinges: Machined to support the significant weight of steel and ceramic glass, ensuring smooth, frictionless operation without sagging over decades of heavy use.
Gone are the days when fire safety meant installing bulky, industrial-looking steel plates that disrupt a building's interior design. We have reimagined fire-rated architecture to serve as a stunning visual asset. By combining ultra-slim profiles with expansive glass spans, this system empowers architects to design light-filled, open-concept spaces that secretly harbor industrial-grade fire protection.
Slim-Frame Elegance: Inspired by classic Crittall-style aesthetics, the narrow sightlines maximize the glass-to-frame ratio for a highly contemporary, sophisticated appearance.
Endless Color Possibilities: Available in the complete RAL color spectrum via premium powder coating, allowing precise matching to corporate branding or interior palettes.
Architectural Continuity: The sleek finish and refined tactile feel of the frames elevate the sensory experience of the space, blending seamlessly with high-end lobby materials like marble and brass.
Bespoke Configurations: Fully customizable grid patterns and mullion layouts give designers the freedom to create unique, statement-making glass facades.
Flexibility in design is paramount for large-scale developments. This steel-frame curtain wall system is engineered to adapt to a multitude of spatial requirements, providing cohesive fire protection across diverse architectural zones. Whether securing a sprawling commercial atrium or a compact hospital stairwell, the system scales flawlessly to meet the specific functional and spatial demands of the environment.

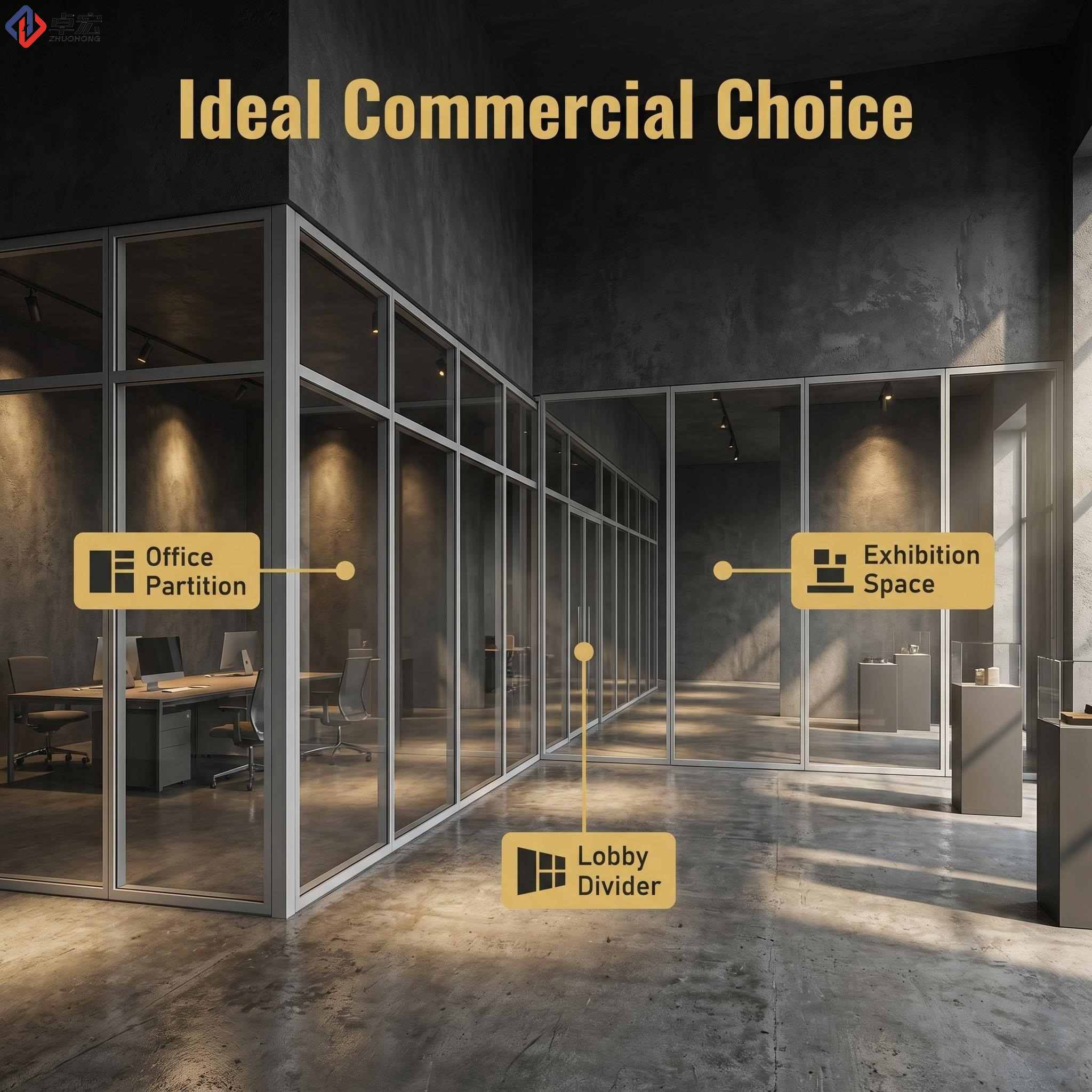

Expansive Atrium Partitions: Capable of being spliced into large-area fire-rated curtain walls, dividing massive commercial spaces without sacrificing visual connectivity.
High-Traffic Corridors: Ideal for schools and hospitals where wide, double-open configurations are necessary to accommodate the constant flow of people and equipment.
Secure Escape Routes: Perfectly suited for high-rise building stairwells, providing a reliable, smoke-free path for vertical evacuation.
Premium Hospitality Spaces: Enhances the safety of hotel lobbies and dining areas while maintaining the luxurious, welcoming atmosphere expected by guests.
We understand that the true cost of a building component includes the time required for installation and the effort needed for long-term upkeep. Our system is designed with the contractor and facility manager in mind, streamlining the deployment process and minimizing future maintenance overhead. This comprehensive support structure ensures the product performs exactly as intended from day one through year fifty.
Pre-Fabricated Efficiency: Available in KD (Knock-Down) disassembled frames or fully welded configurations, optimizing shipping logistics and accelerating on-site assembly.
Comprehensive Installation Guides: Accompanied by detailed, step-by-step technical documentation to eliminate guesswork and drastically reduce contractor installation errors.
Low-Maintenance Finishes: The durable hot-dip galvanized and powder-coated surfaces resist scratching and fading, requiring only basic cleaning to maintain their pristine appearance.
Inspection-Ready Design: Engineered to easily pass annual fire safety audits, with accessible hardware and visible certification tags that simplify routine maintenance checks.
Selecting the right partner for architectural safety infrastructure is a critical decision that impacts project timelines, budgets, and ultimate building safety. As a dedicated manufacturer and trusted supplier, we bring decades of specialized engineering expertise directly to your large-scale developments. We bypass intermediaries to provide you with unparalleled technical support, transparent communication, and scalable production capabilities tailored to your exact project specifications.
Direct Manufacturer Advantage: Benefit from streamlined communication, rigorous quality control at the factory level, and highly competitive procurement structures.
Uncompromising Quality Assurance: Every frame and glass panel undergoes exhaustive in-house testing before deployment, ensuring zero defects upon arrival at your site.
Dedicated Project Management: Our technical team collaborates closely with your architects and contractors from the initial drafting phase through to final installation.
Scalable Production Capacity: Equipped to handle massive volume requirements with precise lead times, keeping your construction schedule firmly on track.
Global Logistics Expertise: Proven experience in securely packaging and transporting heavy, fragile architectural glass systems to international destinations without damage.
To assist architects, contractors, and procurement specialists in making informed decisions, we have compiled answers to the most complex technical inquiries regarding our FD30 curtain wall systems.
The maximum allowable dimensions for the transparent ceramic fire glass depend on the specific certification standard (such as UL or EN) required for your region. However, our advanced steel framing allows for exceptionally large continuous spans, often exceeding standard industry limitations. Please consult our technical engineering team with your specific elevation drawings for precise maximum sizing and mullion spacing capabilities.
Our curtain wall system is engineered with specialized expansion joints and flexible intumescent perimeters. These features absorb structural deflections, wind loads, and the extreme thermal expansion that occurs during a fire event. This prevents the steel frames from buckling and ensures the ceramic glass remains securely housed within the glazing pocket under severe stress.
Yes. While primarily utilized for interior fire compartmentalization, the system can be adapted for exterior applications. By utilizing a hot-dip galvanized steel substrate followed by a marine-grade architectural powder coating, the frames become highly resistant to UV degradation, moisture, and atmospheric corrosion, maintaining their structural integrity and aesthetic appeal over time.
To ensure precision and reduce on-site labor, we offer factory-prepared hardware cutouts and can pre-install critical components such as heavy-duty hinges and flush bolts. Surface-mounted hardware like automatic door closers and panic bars are typically shipped alongside the frames to prevent transit damage, accompanied by precise alignment templates for rapid on-site attachment.
The high-density mineral wool and aluminum silicate refractory fibers packed within the steel profiles do much more than resist heat; they act as exceptional sound dampeners. When combined with the thick ceramic glass and perimeter acoustic/smoke seals, the system significantly reduces sound transmission, making it an excellent choice for environments requiring both fire safety and noise privacy, such as hospitals and corporate boardrooms.
