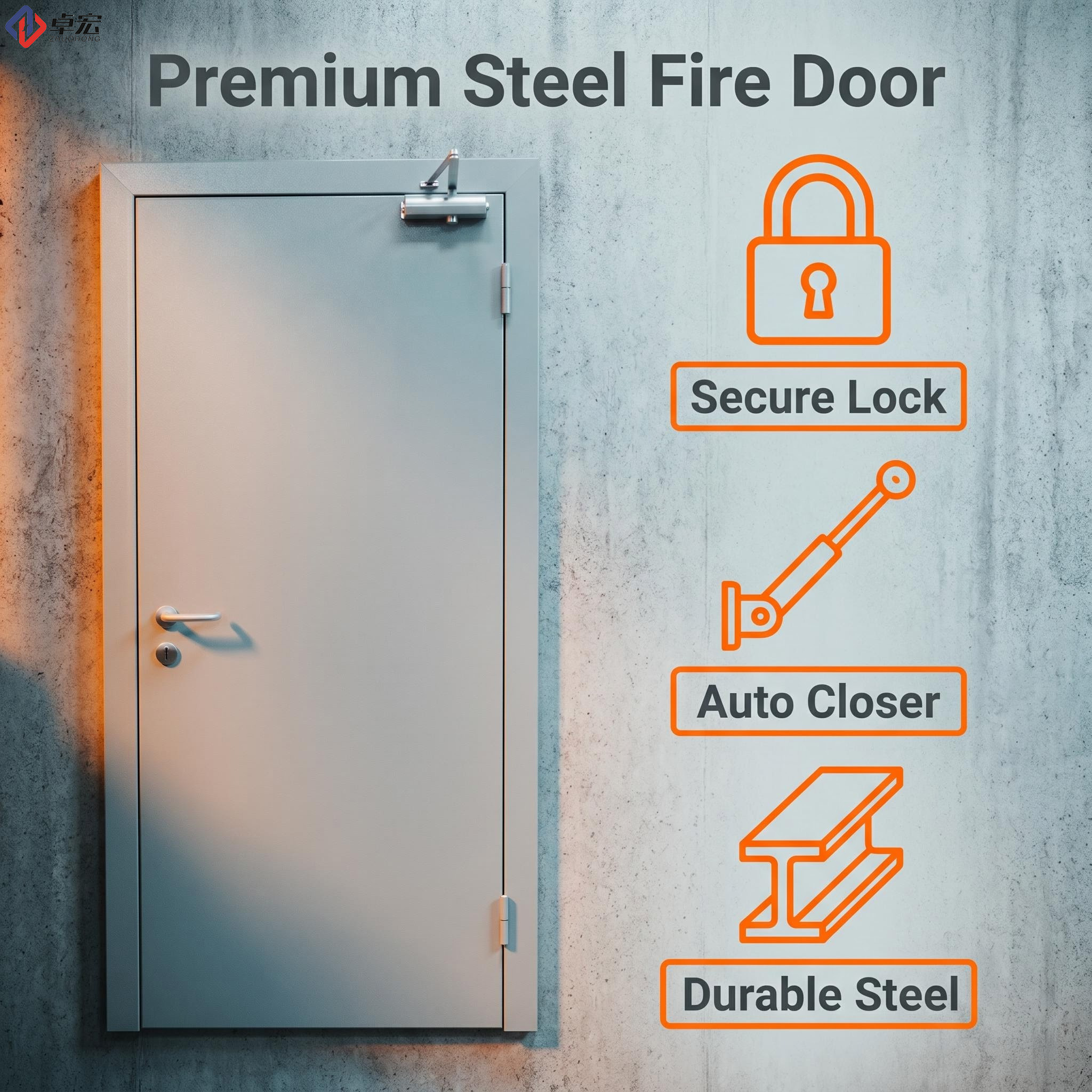

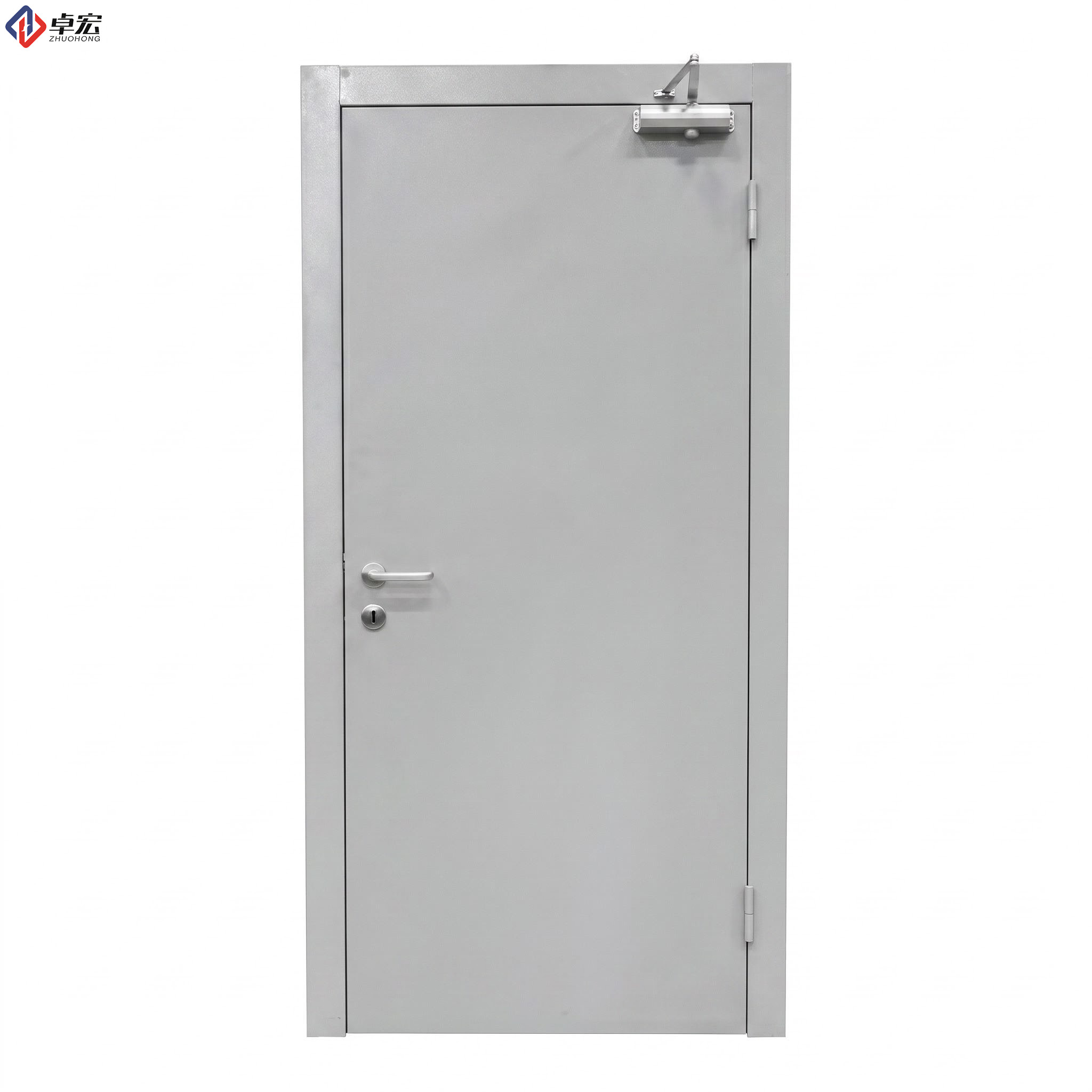

FD30 steel single leaf fire door provides up to 30 minutes of certified fire protection
Constructed from high-quality galvanized steel for exceptional strength and durability
Fire-resistant core and intumescent seals help prevent the spread of flames, heat, and smoke

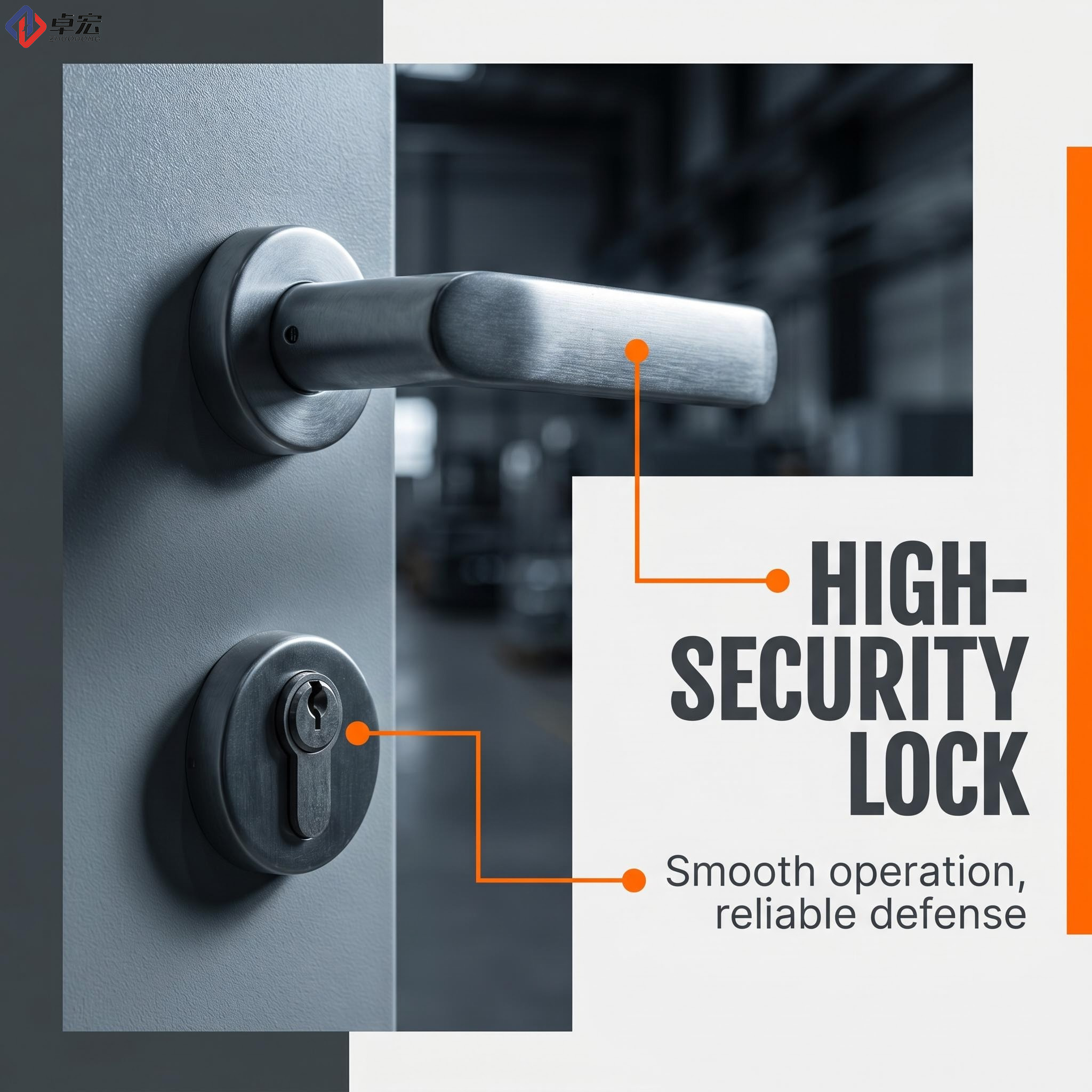

Heavy-duty fire-rated lockset enhances security and emergency protection
Reinforced steel structure maintains stability under high-temperature conditions
Electrostatic powder-coated surface offers excellent corrosion resistance and long-lasting appearance
Smooth, flush design integrates seamlessly into commercial, industrial, and public buildings
Suitable for high-traffic environments requiring reliable daily operation
Low-maintenance construction reduces long-term operating and replacement costs

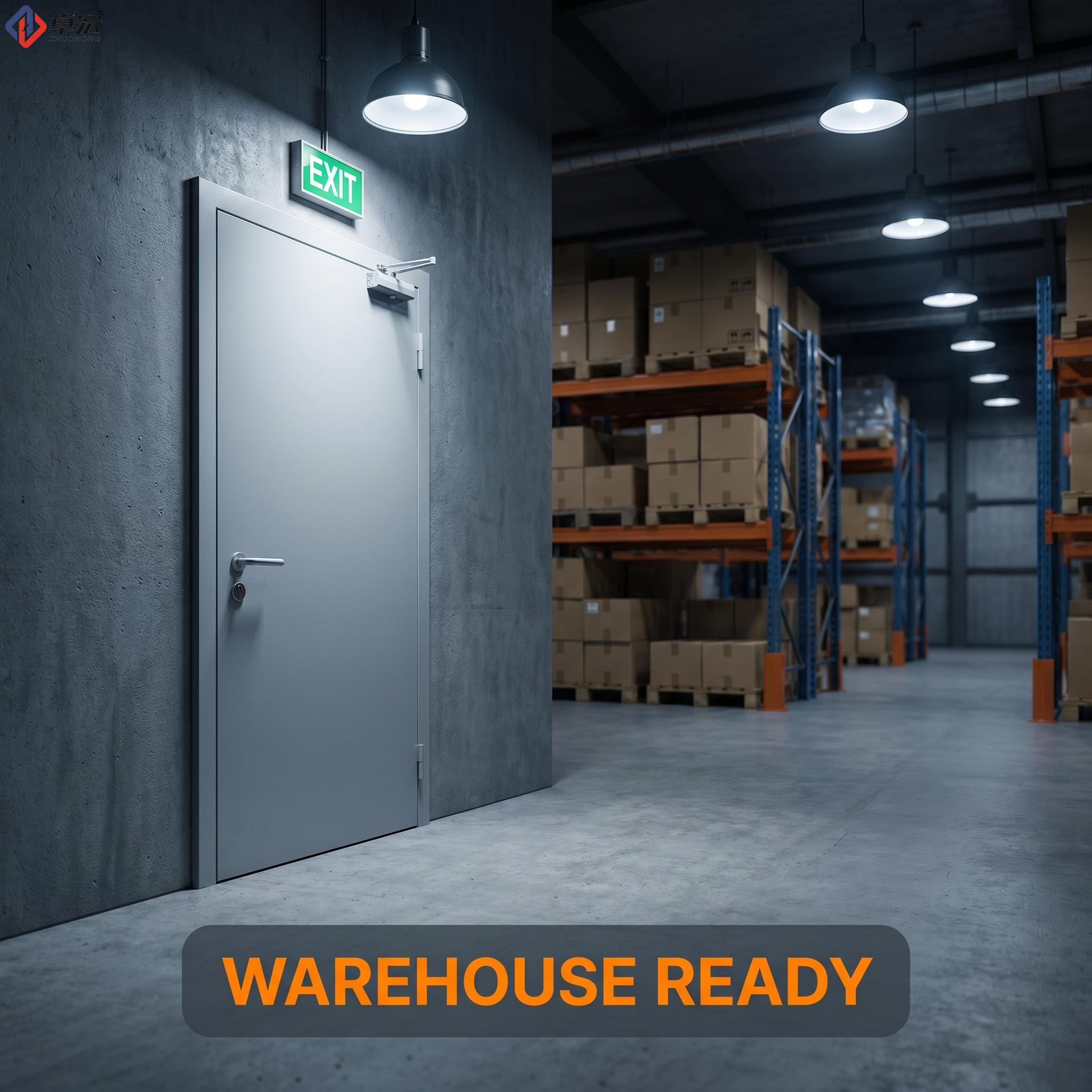

Ideal for corridors, stairwells, utility rooms, warehouses, offices, hospitals, schools, hotels, and industrial facilities
Available in custom sizes, fire ratings, hardware configurations, and finish options
Complies with modern fire safety requirements for commercial and institutional projects
Designed for contractors, developers, distributors, facility managers, and wholesale construction projects
Product Name | FD30 Steel Single Leaf Fire Door |
Fire Rating | FD30 (30 Minutes), optional FD60/FD90/FD120 |
Material | Galvanized Steel / SPCC Cold-Rolled Steel |
Door Leaf Thickness | 44mm - 55mm |
Steel Sheet Thickness | 1.0mm (Door Leaf) / 1.5mm (Door Frame) |
Core Material | Quality Perlite Fireproof Board / Mineral Wool |
Standard Size | 900/1000mm x 2100mm (Customizable up to 1200x2400mm) |
Surface Finish | Electrostatic Powder Coating / Rust Inhibiting Primer |
Opening Direction | Swing (Inward/Outward, Left/Right) |
Accessories | Fireproof Lock, Panic Push Bar, Door Closer, Fire Hinges, Intumescent Seal |
Certifications | BS EN 1634-1, BS 476-22, CE, UL 10C, NFPA 80 |
Our steel fire doors are engineered to deliver uncompromising performance, ensuring that your commercial or industrial facility remains secure under the most demanding conditions. Every individual component is carefully selected to maximize longevity, operational efficiency, and occupant safety.
The core strength of this door lies in its premium galvanized steel construction. The 1.5mm thick frame provides a rigid, unyielding foundation that resists warping and twisting over time, while the 1.0mm door leaf easily withstands high-impact usage in busy, high-traffic environments like hospitals, schools, and manufacturing plants.
Filled with high-density perlite or mineral wool, the door acts as a highly effective sound barrier. The dense core absorbs ambient noise, creating a quieter, more focused interior environment. Simultaneously, it prevents thermal transfer, helping to maintain energy efficiency and climate control throughout the building's zones.
We understand that safety equipment must blend naturally into your overarching design vision. The customizable electrostatic powder coating allows you to match exact project color schemes, resulting in a pristine, factory-grade finish that resists chipping, fading, and scratching even after years of heavy use.
Rapid Deployment: Pre-machined cutouts for hardware ensure swift, error-free installation on site, keeping your construction timelines strictly on schedule.
Maintenance-Free Operation: Heavy-duty, self-lubricating fire hinges eliminate the need for constant upkeep, preventing annoying squeaks and door alignment issues.
Environmental Resilience: The rust-inhibiting primer guarantees exceptional performance, preventing oxidation even in areas with high humidity or fluctuating seasonal temperatures.
To fully understand the immense value this fire door brings to your architectural projects, we have broken down its core engineering dimensions. Each aspect is meticulously designed to solve specific challenges faced by contractors, facility managers, and safety inspectors.
Navigating complex building codes can be a significant challenge for project developers. This product is rigorously tested and certified to elite international standards, including BS EN 1634-1, BS 476-22, CE, and UL 10C. Backed by comprehensive testing reports, it guarantees seamless compliance with strict global fire safety regulations, ensuring your engineering projects pass final inspection without costly delays or reworks.
Achieving a strict FD30 (30-minute) fire rating, this door serves as a frontline defense in emergency scenarios. It is equipped with advanced intumescent seals that expand rapidly upon exposure to extreme heat, alongside specialized cold-smoke seals. This dual-action system effectively blocks the lethal spread of flames and toxic fumes, securing vital evacuation routes and buying precious time for occupants to exit safely.
Designed specifically for high-frequency commercial and industrial environments, the door utilizes premium galvanized steel. The interior is densely packed with eco-friendly, high-efficiency perlite fireproof board or mineral wool. This robust, composite construction prevents structural deformation under thermal stress and easily absorbs daily physical impacts, ensuring decades of reliable, heavy-duty service.
No two buildings are exactly alike, which is why we offer highly flexible engineering solutions. We fully support non-standard size manufacturing and offer optional integrations such as fire-rated vision panels and ventilation louvers. Finished with a wide selection of RAL colors via electrostatic powder coating, the door perfectly aligns with diverse interior design aesthetics and specific functional requirements.

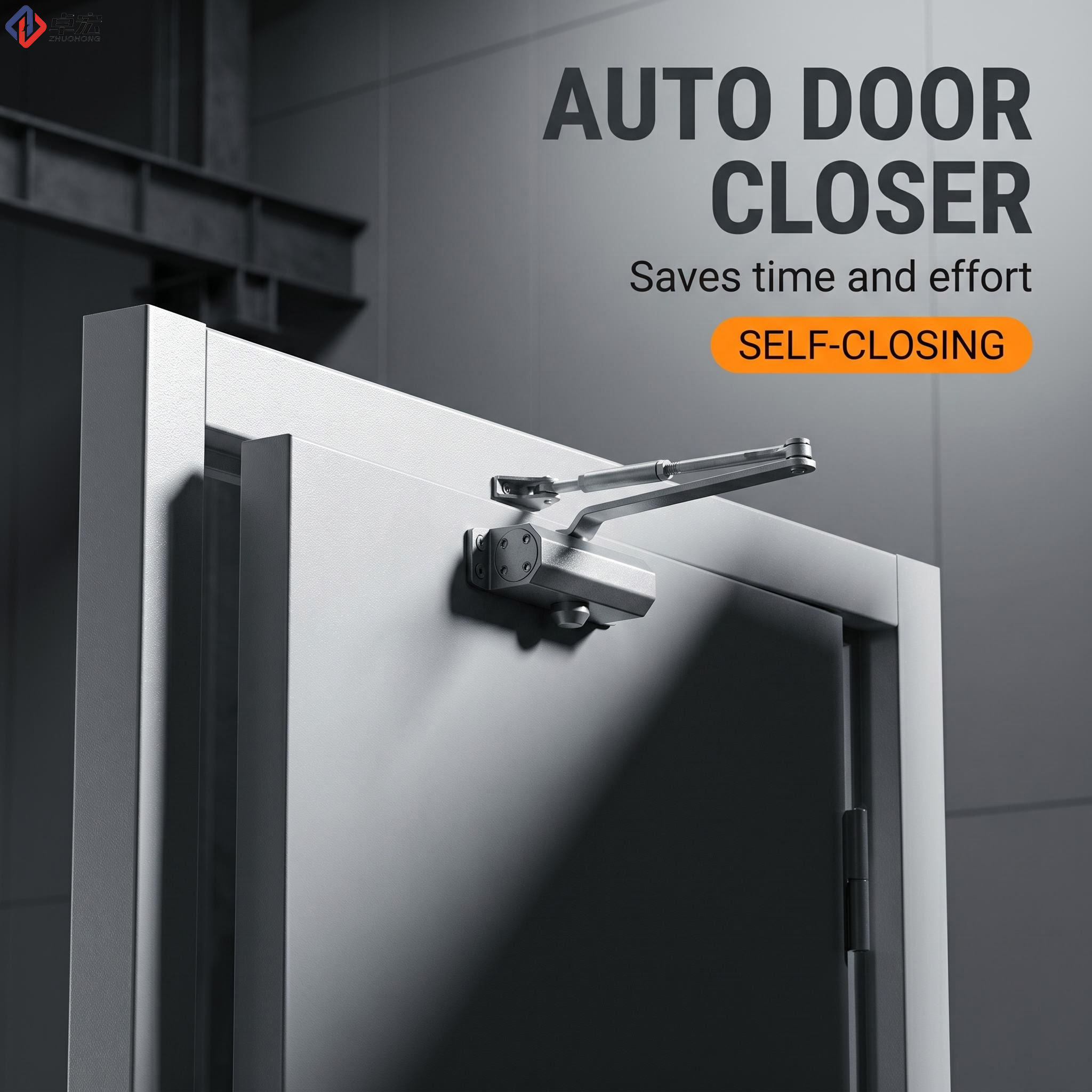

A fire door is only as effective as its operating hardware. We supply a complete suite of premium fire-rated accessories, available as standard inclusions or optional upgrades. This includes heavy-duty door closers, intuitive panic push bars, highly secure fireproof locks, and stainless steel fire hinges. These components work in perfect harmony to ensure the door automatically closes and latches during an emergency, while allowing smooth, panic-free egress.
Longevity is built right into the surface of every door we manufacture. Through a rigorous application of rust-inhibiting primer followed by a baked-on electrostatic powder coating, the door achieves exceptional paint adhesion. This superior anti-corrosion and weather-resistant finish dramatically extends the product's lifespan, even when installed in demanding, damp, or highly corrosive environments.
We deeply understand the logistical challenges associated with large-scale international procurement. Our optimized knock-down (KD) frame packaging significantly increases shipping container load capacity, effectively driving down your ocean freight costs. Utilizing multi-layered protective wrapping and reinforced transit pallets, we guarantee that your volume orders arrive at the destination site in pristine, damage-free condition, ready for immediate deployment.
Selecting the right manufacturing partner is absolutely crucial for the success of your large-scale construction and commercial development projects. We do more than just supply doors; we provide comprehensive, engineered safety solutions designed to elevate your operational efficiency and protect your capital investments.
Our state-of-the-art production facilities leverage automated precision engineering, ensuring that every single unit in a high-volume order maintains the exact same flawless standard. From the initial raw material selection to the final rigorous quality assurance check, our processes are designed to deliver uncompromising reliability and excellence.
Direct Manufacturer Advantage: By eliminating intermediaries, we provide highly competitive pricing structures for volume procurement, maximizing your project's overall return on investment.
Dedicated Project Support: Our team of technical specialists works closely with your architects and contractors to provide tailored CAD drawings, detailed hardware scheduling, and expert compliance consultation.
Reliable Global Fulfillment: With streamlined production cycles and robust international logistical networks, we ensure your materials are delivered exactly when your construction timeline demands them.
Unwavering Quality Control: Every door undergoes rigorous acoustic, thermal, and mechanical testing before leaving our facility, guaranteeing out-of-the-box perfection and immediate operational readiness.
Absolutely. While our standard dimensions are 900/1000mm x 2100mm, our advanced manufacturing capabilities allow us to customize door sizes up to 1200mm x 2400mm. We work directly with your project specifications and architectural drawings to ensure a precise, seamless fit for any unique structural opening.
Both cores offer exceptional fire resistance and thermal stability. The perlite fireproof board is highly rigid, offering excellent structural stability and impact resistance, making it ideal for standard commercial applications. Mineral wool provides superior acoustic dampening properties, which is highly beneficial for environments requiring strict noise control, such as recording studios, hospitals, or educational facilities.
To optimize shipping efficiency and significantly reduce transportation costs for volume orders, our door frames are typically supplied in a knock-down (KD) format. The KD frames are engineered with precision joints for rapid, intuitive assembly on-site, perfectly aligning with the pre-hung door leaf for a hassle-free installation process.
The intumescent seals are strategically installed around the perimeter of the door leaf or frame. Under normal daily conditions, they remain dormant and unobtrusive. However, when exposed to extreme heat (typically above 150°C), a chemical reaction causes them to rapidly expand to multiple times their original size. This tightly seals the gap between the door and the frame, preventing the dangerous passage of lethal smoke and flames.
Yes, comprehensive compliance is a cornerstone of our manufacturing philosophy. Every shipment can be accompanied by the relevant testing certificates and detailed technical reports for BS EN 1634-1, UL 10C, CE, NFPA 80, and other applicable standards. This transparent documentation ensures your project managers can easily and swiftly secure approvals from local fire marshals and building authorities.
Our steel fire doors are highly adaptable to modern security needs. We can pre-machine the door leaf and frame at our factory to precisely accommodate your specific electronic strikes, magnetic locks, or smart access control systems. Our engineering team will coordinate with your security specifications to ensure all cutouts are exact and maintain the strict integrity of the door's fire rating.
