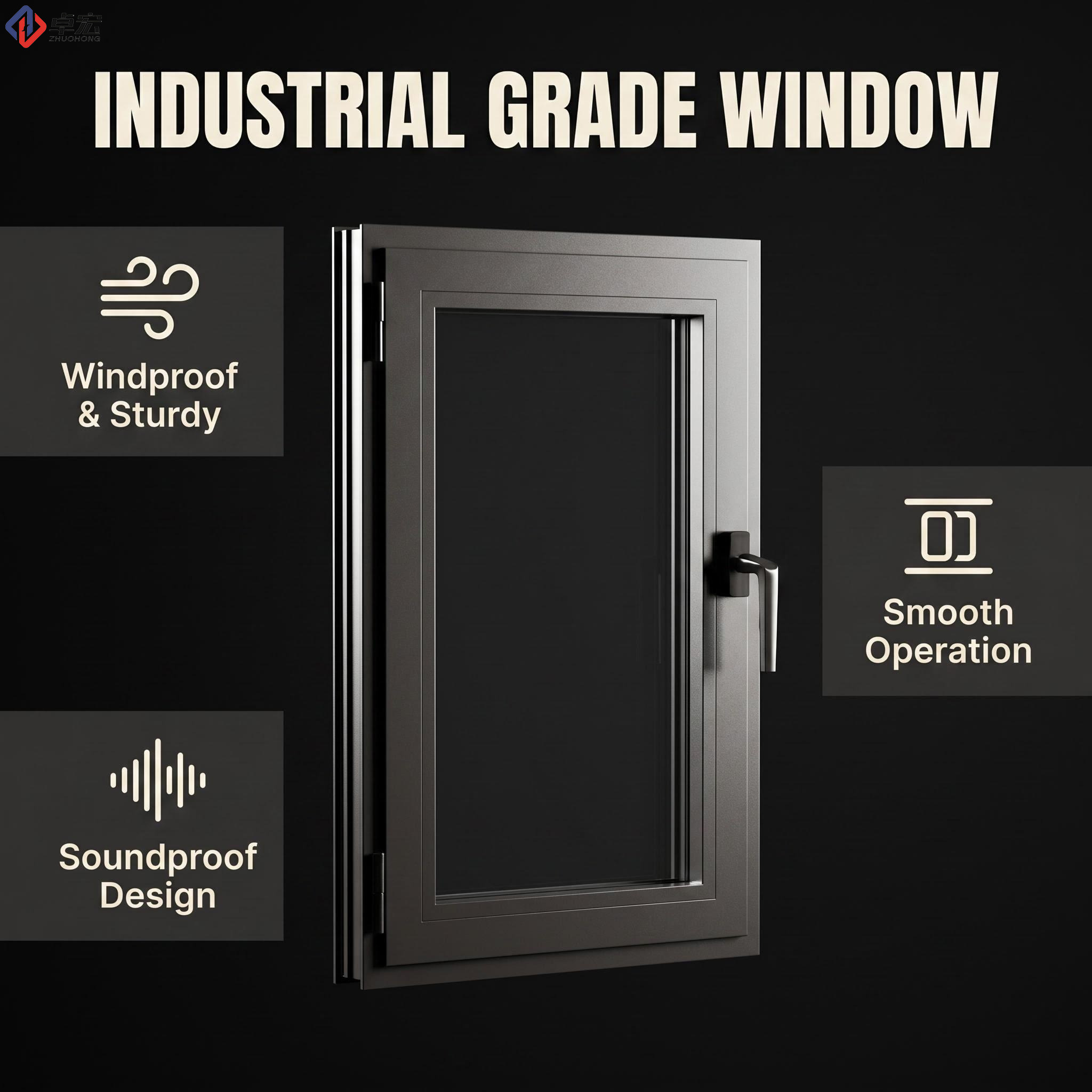

FD60 fire-rated steel casement window provides up to 60 minutes of fire protection
Single sash opening design combines safety, ventilation, and practical functionality
Heavy-duty steel frame delivers exceptional strength, durability, and long-term performance

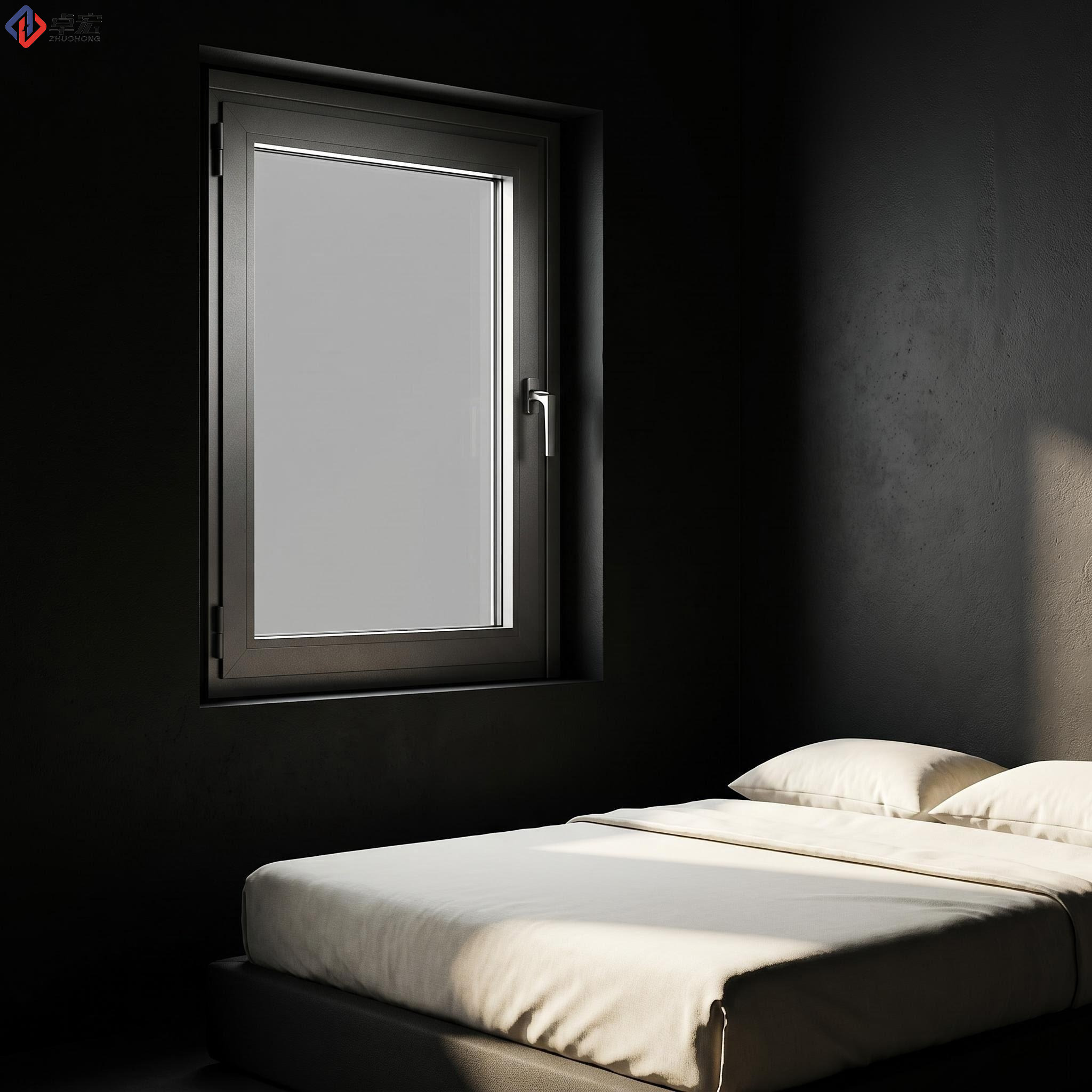

Slim sightlines maximize natural light while maintaining a modern architectural appearance
High-performance fire-resistant glass helps contain flames, heat, and smoke during emergencies
Multi-point locking system enhances security and ensures a reliable seal
Reinforced hinges provide smooth, stable operation and support frequent daily use
Offers additional thermal insulation and sound reduction benefits for improved indoor comfort
Powder-coated finish provides excellent corrosion resistance and low maintenance requirements

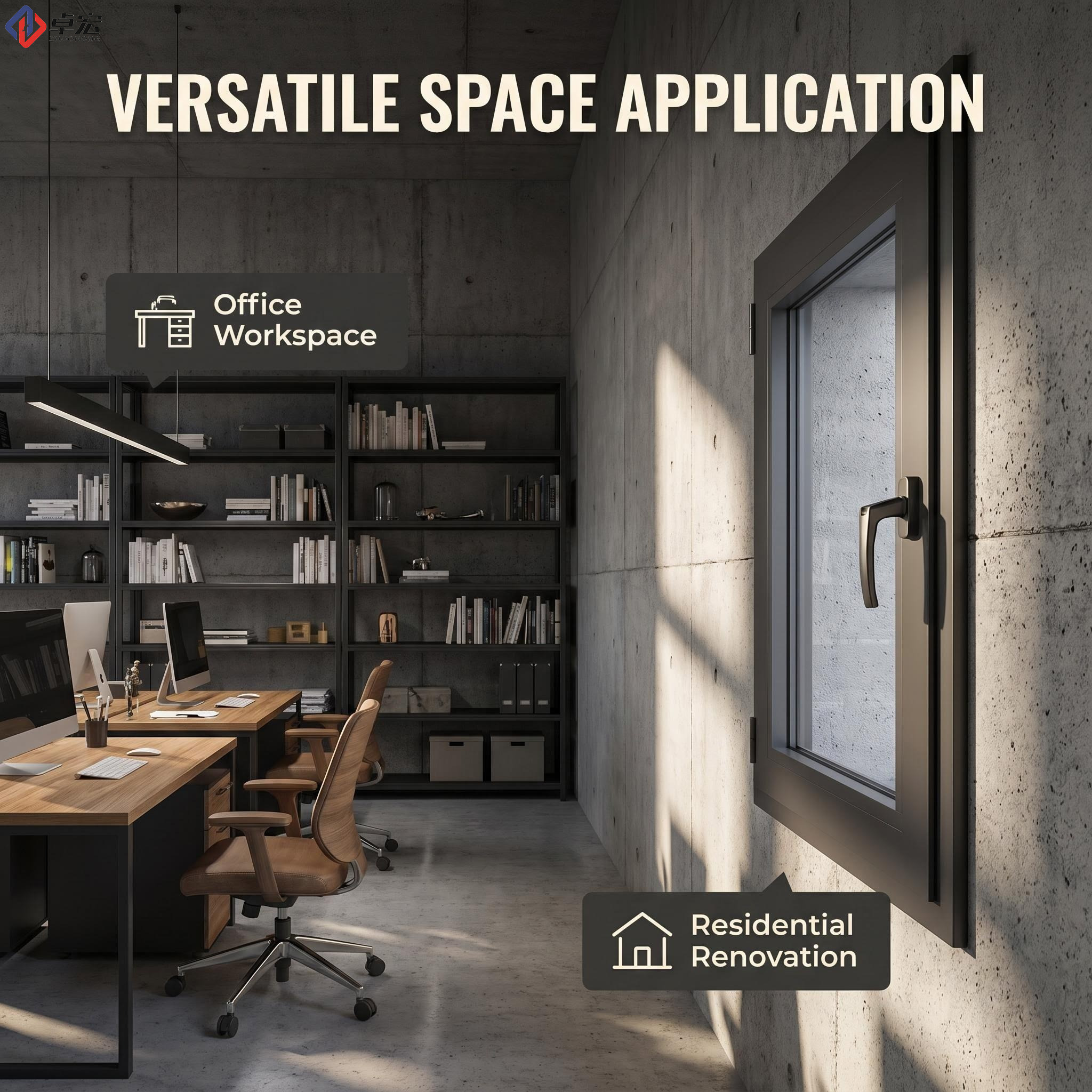

Suitable for commercial buildings, offices, hospitals, schools, hotels, stairwells, and fire escape routes
Available in custom dimensions, colors, glazing options, and project-specific configurations
Ideal for architects, contractors, developers, distributors, and wholesale construction projects
Our engineering team has meticulously calibrated every technical parameter of this fire-rated window to ensure it exceeds international safety standards while providing exceptional operational longevity. The specifications detailed below outline the exact material compositions, performance metrics, and configuration options available for your demanding project requirements. From the high-strength steel core to the advanced thermal break technology, each individual component is deliberately selected to guarantee maximum structural integrity, superior thermal insulation, and reliable fire containment. We understand that commercial developments require precise data for architectural planning and safety compliance; therefore, the following matrix provides a comprehensive breakdown of the window's capabilities, ensuring complete transparency for your procurement process.
Parameter | Specification Details |
|---|---|
Product Name | FD60 Steel Casement Fire Rated Window – Single Sash |
Fire Rating | FD60 / EI60 (60 minutes fire integrity and insulation) |
Opening Method | Single Sash Casement |
Frame Material | High-strength steel (Cold-rolled/Hot-rolled steel profiles, optional polyamide thermal break structure) |
Glass Configuration | High-performance fire-rated insulated glass (Supports double/triple glazing, Low-E coating, Argon filled, laminated or tempered treatment) |
Surface Treatment | E-coat / Hot-dip galvanizing + outdoor grade powder coating (Supports full RAL color customization) |
Certification Standards | Complies with EN 13501-2 and other international building fire codes |
Hardware System | High-security multi-point locking system (Optional fire linkage automatic window closing actuator) |
Thermal Performance | Extremely low U-value (Combined with thermal break technology and high-performance glass) |
Service Life | Steel frame expected lifespan up to 50-100 years |
Engineered to resolve the complex challenges faced by modern commercial construction, this single sash window delivers a comprehensive suite of benefits that extend far beyond basic fire containment. It is designed to optimize building performance, reduce lifecycle costs, and streamline the installation process for large-scale developments.
Uncompromised Life Safety: Delivers a guaranteed 60-minute barrier against intense heat, aggressive flames, and lethal smoke, ensuring occupants have ample time for safe evacuation.
Architectural Freedom: The inherent strength of the steel core permits exceptionally narrow profiles, allowing designers to maximize glass surface area and flood interiors with natural daylight.
Energy Efficiency Optimization: By integrating advanced thermal breaks and argon-filled glazing, the system drastically cuts heating and cooling loads, contributing directly to green building certifications.
Acoustic Isolation: The heavy-duty laminated glass and airtight compression seals work in tandem to block out disruptive urban noise, creating a serene and productive indoor environment.
Maintenance-Free Longevity: Advanced multi-stage surface treatments eradicate the risk of oxidation and rust, ensuring the frames retain their pristine appearance for decades with minimal upkeep.
Navigating the stringent requirements of modern building codes demands uncompromising reliability. The core advantage of this system lies in its absolute fire integrity and insulation, certified to FD60 and EI60 standards. This provides architects and developers with absolute peace of mind regarding regulatory approval.
60-Minute Protection Window: Provides a critical one-hour barrier against the aggressive spread of fire, extreme thermal radiation, and toxic smoke inhalation.
Global Standard Adherence: Rigorously tested to comply with EN 13501-2 and other premier international fire safety regulations, guaranteeing seamless approval during municipal safety inspections.
Evacuation Security: By effectively containing the blaze to specific zones, it secures vital escape routes, buying invaluable time for emergency response teams and occupant evacuation.
Risk Mitigation: Installing certified containment infrastructure significantly lowers liability risks and can positively impact commercial insurance premiums for property developers.
Historically, fire-rated windows forced architects to accept bulky, visually intrusive frames. By harnessing the extraordinary yield strength of premium steel, we have engineered a solution that shatters this limitation, offering a perfect synergy of formidable strength and refined aesthetics.
Ultra-Narrow Sightlines: The high-tensile steel allows for exceptionally slim frame profiles that maximize the transparent viewing area without compromising the FD60 rating.
Expansive Glazing Capacity: The robust structural core easily supports the immense weight of oversized, multi-layered fire glass, accommodating bespoke large-aperture architectural designs.
Maximized Daylight Infiltration: Thinner frames translate directly to increased natural light penetration, elevating the psychological comfort and productivity of the building's occupants.
Aesthetic Versatility: Perfectly bridges the gap between heavy-duty industrial safety and sleek, contemporary architectural elegance, replacing outdated, cumbersome alternatives.
Steel windows are often scrutinized for poor insulation, but our advanced engineering completely eliminates this traditional pain point. This window system is designed to act as a formidable barrier against both extreme weather fluctuations and disruptive urban noise pollution.
Polyamide Thermal Break Technology: Strategically integrated non-conductive barriers sever the thermal bridge within the steel frame, drastically reducing heat transfer and preventing interior condensation.
Exceptional U-Values: When paired with our high-performance double or triple glazing, Low-E coatings, and argon gas fills, the system achieves industry-leading thermal efficiency.

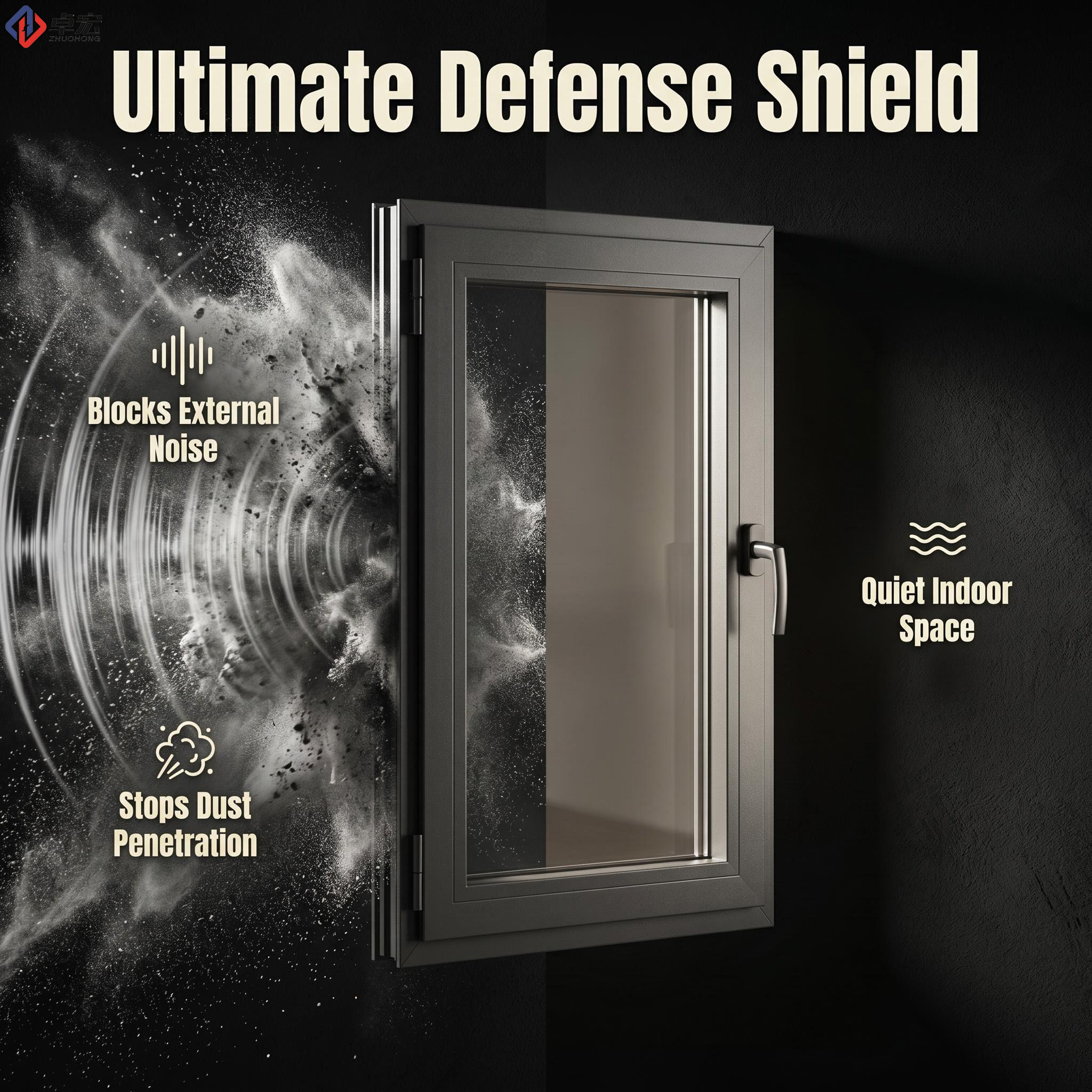

Significant Decibel Reduction: The dense material composition of the steel and laminated fire glass dampens external sound waves, ensuring a quiet, focused interior atmosphere for commercial offices or hospitals.
Sustainability Alignment: By minimizing HVAC energy consumption, this window actively supports developers in achieving LEED, BREEAM, and other prestigious green building certifications.
Exposure to harsh environmental elements demands a surface treatment that can withstand the test of time. We have developed a meticulous multi-stage finishing process that guarantees decades of flawless performance, eliminating the hidden costs of continuous maintenance.
Extreme Weather Resistance: The base steel undergoes rigorous E-coat (electrophoretic deposition) or hot-dip galvanizing, creating an impenetrable shield against moisture, salt, and atmospheric pollutants.
Architectural Grade Powder Coating: Finished with a UV-stable, outdoor-grade powder coat that resists fading, chalking, and scratching, ensuring the frames look newly installed for years.
Infinite Color Matching: Fully customizable across the entire RAL color spectrum, allowing precise alignment with corporate branding or specific exterior facade color palettes.
Heritage and Modern Adaptability: Whether requiring a sleek matte black for a modern skyscraper or a distressed, antique finish for a historic building renovation, the aesthetic possibilities are limitless.
Modern commercial infrastructure requires systems that actively communicate and respond to emergencies. This window is designed to integrate seamlessly into intelligent building ecosystems, offering both everyday functionality and automated emergency response.

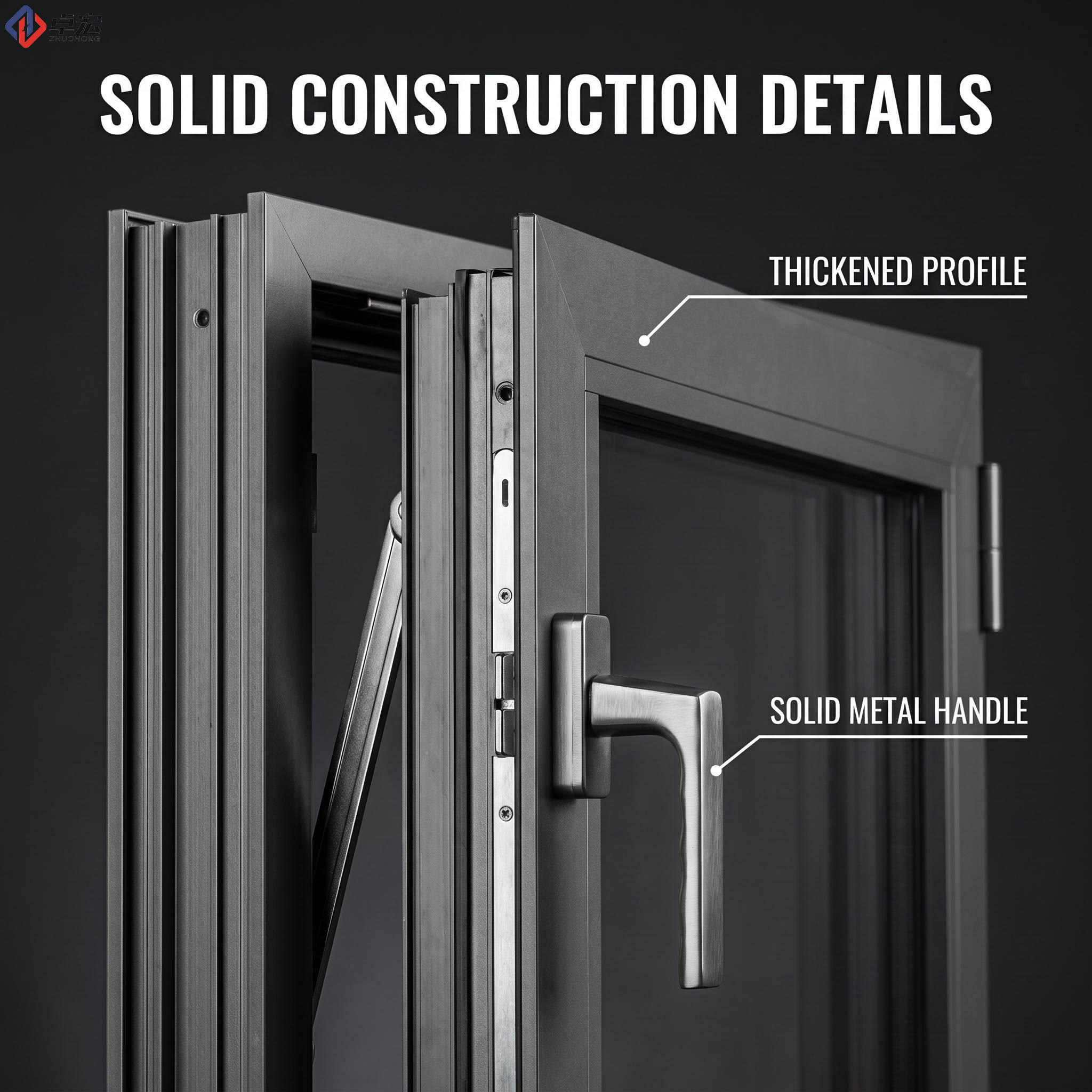

Heavy-Duty Articulation: Equipped with premium, anti-sag hinges that ensure smooth, frictionless operation despite the substantial weight of the fire-rated sash.
Multi-Point Security: Features a high-security locking mechanism that anchors the sash at multiple points, providing formidable resistance against forced entry and unauthorized access.
Automated Actuator Compatibility: Can be effortlessly upgraded with concealed electric actuators for motorized opening and closing, adapting to specific daily ventilation strategies.
Building Management System (BMS) Linkage: Designed to interface directly with central fire alarms; in the event of a detected fire, the system can automatically trigger the windows to close securely or open for automatic smoke ventilation (AOV).
We understand that time is the most critical currency in large-scale construction. Our entire manufacturing and delivery ecosystem is optimized to empower architects, contractors, and project managers, ensuring your development stays strictly on schedule and within budget.
Comprehensive Technical Support: We supply exhaustive architectural node drawings, precise 3D BIM models, and fully transparent testing certification reports to expedite the specification and approval process.
High-Precision Prefabrication: Every unit is meticulously assembled and quality-checked in our controlled manufacturing facility, drastically reducing on-site modification requirements.
Streamlined Installation: The modular system design is engineered for rapid, foolproof installation, minimizing expensive labor hours and accelerating the overall project timeline.
Versatile Application: Proven to perform flawlessly across a diverse range of demanding environments, including high-rise corporate offices, healthcare facilities, educational institutions, and advanced industrial plants.
Selecting the right manufacturing partner for critical life-safety infrastructure is a decision that impacts the entire lifecycle of a building. As a dedicated supplier to the commercial construction sector, we bring decades of specialized metallurgical and fire-safety expertise to every unit we produce, ensuring you receive a product of unmatched reliability.
End-to-End Manufacturing Control: By managing every phase from raw steel procurement to final powder coating within our own facilities, we guarantee absolute quality consistency and strict adherence to volume lead times.
Unrivaled Certification Portfolio: Our products do not just meet the minimum standards; they are rigorously tested by independent global authorities to ensure they perform flawlessly when lives are on the line.
Dedicated Engineering Consultation: Our in-house team of structural engineers and fire safety experts collaborates directly with your architectural staff to customize configurations that perfectly match your specific site requirements.
Scalable Production Capacity: Whether your project requires a dozen specialized units for a boutique heritage restoration or thousands of windows for a sprawling commercial complex, our volume-optimized production lines deliver without delay.
The EI60 classification is a rigorous European standard (EN 13501-2) indicating that the window provides 60 minutes of both Integrity (E) and Insulation (I). Integrity means the window will physically prevent flames and hot gases from passing through the barrier. Insulation means it will actively block the transfer of dangerous radiant heat, ensuring the unexposed side remains cool enough to allow safe passage for evacuating personnel and first responders.
Yes, absolutely. The thermal break is specifically engineered to perform a critical dual role. During normal daily operation, it prevents thermal bridging to ensure exceptional energy efficiency. In the event of a fire, the core steel structure maintains the window's rigid integrity, while specialized intumescent seals embedded within the frame expand rapidly to fill any gaps. This ensures the fire-rating is never compromised by the melting of the thermal break components.
Fire-rated insulated glass is inherently heavy due to its multi-layered composition. To counteract this, our frames are constructed from high-yield cold-rolled or hot-rolled steel, which possesses immense structural rigidity. Furthermore, we utilize heavy-duty, anti-sag architectural hinges specifically rated for extreme load-bearing applications. This engineering ensures the sash remains perfectly aligned and operates with a smooth, fluid motion for its entire 50 to 100-year expected lifespan without dropping or warping.
Yes, the window is designed precisely with smart building ecosystems in mind. We can factory-fit high-performance, concealed electric actuators that interface seamlessly with your Building Management System (BMS) or central fire alarm network. Depending on your specific fire strategy, the system can be programmed to automatically snap shut to compartmentalize a fire, or open outward to serve as an Automatic Opening Vent (AOV) for rapid smoke extraction.
For projects located in demanding climates, standard paint is entirely insufficient. We utilize a comprehensive multi-stage defense system. The raw steel is first treated with either an electrophoretic deposition (E-coat) or hot-dip galvanizing to provide a robust, penetrating anti-corrosive base. This is then finished with an architectural, outdoor-grade powder coating. This powerful combination completely seals the steel from salt, moisture, and chemical pollutants, virtually eliminating maintenance requirements and preventing rust entirely.
