Wood Fire Doors with Glazing Options provide a high-performance fire-resistant solution that combines structural integrity with visual transparency. Designed to meet rigorous safety standards, these doors offer up to 120 minutes of fire protection while allowing natural light through customizable glazing panels.
| Availability: | |
|---|---|
| Quantity: | |
Step into a realm where architectural elegance meets rigorous life-safety engineering. The FD120 Wood Fire Doors with Glazing Options are meticulously crafted to provide an impenetrable two-hour barrier against extreme heat, raging flames, and toxic smoke, all without sacrificing the visual harmony of your interior spaces. When you run your hand along the surface—whether it is the rich, natural grain of real oak veneer or the flawlessly smooth, impact-resistant high-pressure laminate—you immediately feel the exceptional craftsmanship and attention to detail. The substantial 60mm profile closes with a deeply reassuring, solid acoustic thud, instantly conveying a sense of absolute security, structural weight, and acoustic privacy. Designed specifically to resolve the tension between strict building codes and modern design desires, these doors incorporate precisely engineered glazing that allows natural light to cascade through corridors while maintaining total structural integrity during a crisis. By seamlessly integrating robust fire-retardant cores with sophisticated surface treatments, this door system elevates the standard for commercial, medical, and educational facilities, ensuring that occupants are protected while the interiors remain visually stunning and inviting.
Parameter | Details |
|---|---|
Fire Rating | FD120 (120 minutes fire and smoke barrier) |
Door Thickness | 56mm - 62mm (Standard 60mm) |
Core Material | High-density timber / Mineral/Tectonite cementitious core |
Glazing Options | Certified fire-rated glass (e.g., 10mm Pyrodur glass), custom sizes/shapes for Vision Panels, flush or beading fixing systems |
Finishes | Natural wood veneer (Oak, Walnut, Cherry, etc.) / High-Pressure Laminates (HPL) / Painted finish (RAL/BS 4800 colors) / PVC wrapping |
Frame Material | Hardwood (Density ≥640 Kg/m³) / Composite (Density ≥1000 Kg/m³) |
Sealing System | Intumescent strips and smoke seals (installed on frame or door leaf edges) |
Hardware/Ironmongery | Fire-certified heavy-duty hinges, door closers, locks (factory pre-routed/pre-installed supported) |
Certifications | BS 476-22, BS EN 1634-1, BM TRADA Q-Mark, BWF-CERTIFIRE, FSC® Certified |
Delivery Format | Pre-hung assembly / Unassembled |
Delivering unparalleled performance for demanding environments, these FD120 fire doors are engineered to solve complex architectural challenges. They seamlessly bridge the gap between heavy-duty life safety requirements and the need for refined, modern aesthetics in high-traffic spaces.
Extended Evacuation Window: Guarantees a full 120 minutes of structural integrity, providing critical time for safe building evacuation and emergency response operations.
Acoustic and Thermal Insulation: The dense core materials not only resist fire but naturally dampen sound transmission, creating quieter, more focused environments for corporate offices and private clinics.
Seamless Light Integration: The inclusion of premium glazing options eliminates the dark, enclosed feeling typical of high-rating fire doors, flooding interior corridors with natural daylight.
Rapid On-Site Execution: Available as fully pre-hung assemblies, drastically reducing installation time, minimizing labor costs, and preventing costly on-site routing errors.
Unyielding Durability: The combination of high-density cores and scratch-resistant HPL or PVC finishes ensures the door withstands the daily abuse of heavy foot traffic without losing its pristine appearance.
Navigating the complex landscape of building regulations requires components that offer unquestionable compliance. These doors are rigorously tested against the most demanding international standards to mitigate compliance risks for large-scale commercial and public sector developments.
Stringent Testing Protocols: Fully tested to BS 476-22 and EN 1634-1 standards, ensuring flawless performance and physical barrier protection under extreme thermal stress.
Third-Party Verification: Backed by prestigious BM TRADA Q-Mark and BWF-CERTIFIRE accreditations, providing independent proof of manufacturing consistency, quality, and reliability.
Seamless Inspection Approval: Engineered to meet and exceed the exacting fire safety codes required by municipal inspectors, ensuring smooth project handovers without costly delays.
Comprehensive Documentation: Every unit is fully traceable and supplied with the necessary compliance paperwork to integrate effortlessly into your building's safety dossier.

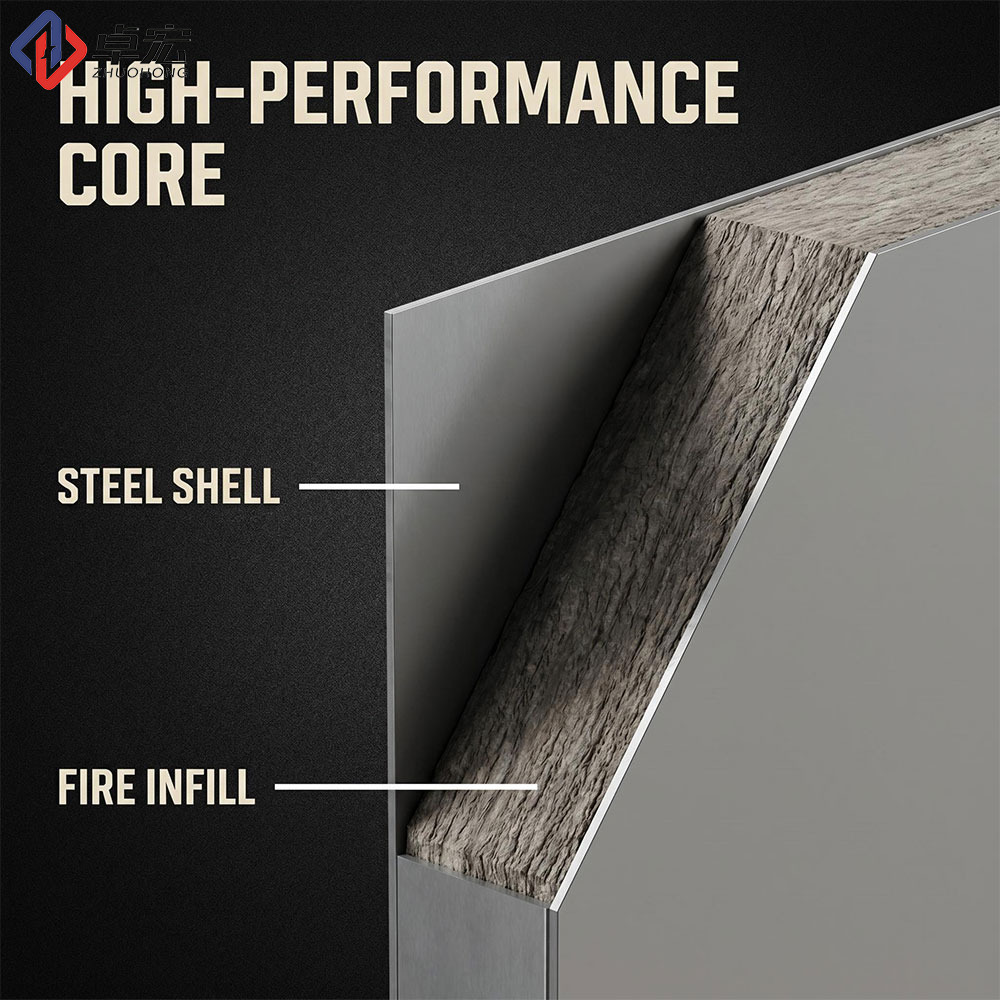

The hidden strength of this door lies within its meticulously engineered core. Built to withstand temperatures exceeding 900°C, the internal architecture is designed to remain resolute when it matters most, actively fighting the spread of catastrophic fires.
Substantial 60mm Profile: Choose between a high-density timber core or an advanced mineral/Tectonite cementitious core, both offering exceptional rigidity and warp resistance.
Reactive Intumescent Technology: The edges are fitted with specialized intumescent strips that rapidly expand upon exposure to heat, hermetically sealing the gap between the door and frame.
Toxic Smoke Blocking: Integrated smoke seals prevent the silent, deadly migration of asphyxiating gases, protecting occupants far beyond the immediate fire zone.
Structural Tenacity: The composite layering prevents the door from buckling or collapsing under intense thermal pressure, maintaining a secure barrier for the full two-hour rating.
Fire safety no longer dictates visually oppressive, solid barriers. Our bespoke glazing configurations allow architects to introduce natural light and visual connectivity into high-risk zones without compromising a single minute of the FD120 rating.
Certified Pyrodur Glass & Bespoke Panels: Utilizing specialized 10mm fire-rated glass available in a diverse array of shapes and dimensions—from sleek vertical rectangles to custom circular portals—tailored to your specific design language.
Precision Fixing Systems: Choose between minimalist flush glazing or traditional beading systems, both engineered to hold the glass securely in place during a severe fire event.
Enhanced Spatial Flow: Perfect for hospital corridors, school hallways, and corporate lobbies, the glazing creates a sense of openness and security simultaneously, eliminating claustrophobic environments.
A life-saving device should not disrupt your interior design narrative. We offer an expansive portfolio of premium surface treatments, ensuring that these heavy-duty fire doors elevate the visual standard of your high-end commercial spaces.
Authentic Wood Veneers: Select from rich Oak, deep Walnut, or warm Cherry timber veneers, bringing the tactile warmth and natural grain of real wood to corporate environments.
High-Pressure Laminates (HPL): Ideal for high-impact zones, our HPL finishes offer extraordinary scratch and scuff resistance while being effortlessly easy to sanitize.
Precision Factory Painting: Achieve absolute color consistency with our factory-applied polyurethane paints, perfectly color-matched to any RAL or BS 4800 specification.
Hygienic PVC Wrapping: For healthcare and laboratory settings, seamless PVC wrapping provides a non-porous, moisture-resistant surface that actively repels bacterial growth.
Efficiency on the job site directly impacts your bottom line. By shifting the complex, precision-demanding work from the construction site to our controlled factory environment, we deliver a plug-and-play solution that accelerates project timelines.
Complete Pre-Hung Sets: Doors are supplied perfectly aligned within their hardwood or composite frames, eliminating the tedious process of on-site hanging and adjustment.
CNC Precision Routing: Hinge recesses, lock keeps, and closer mounting points are machined using computer-controlled routers for flawless hardware integration.

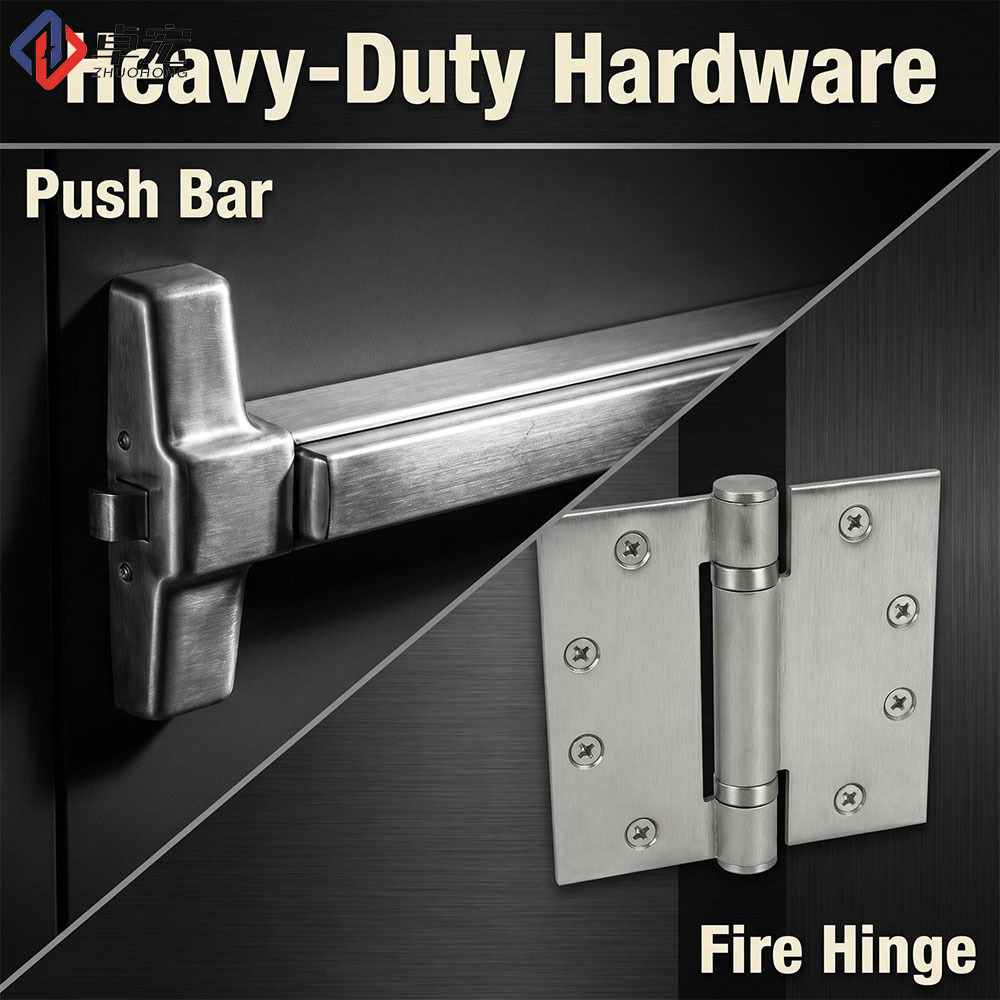

Certified Heavy-Duty Ironmongery: Equipped with specialized, fire-rated hinges, closers, and locking mechanisms that are guaranteed to perform flawlessly under extreme heat.
Labor Cost Reduction: By minimizing the need for skilled carpentry on site, installation times are slashed, drastically reducing overall labor expenditures.
Eradication of On-Site Errors: By machining everything in a controlled environment, the risk of misaligned hinges or poorly fitted seals is completely eliminated.
Versatility is engineered into every aspect of these doors. From towering residential developments to specialized medical facilities, the adaptable nature of the FD120 series makes it the definitive choice for a multitude of demanding sectors.
Healthcare Facilities: Can be customized with lead-lining for radiation protection in X-ray rooms, while maintaining strict fire and hygiene standards.
Educational Institutions: Available with integrated anti-finger-trap mechanisms and robust hardware to withstand the daily rigors of active school environments.
High-Rise Residential: Perfect for apartment entrance doors and lobby corridors, providing critical compartmentation in densely populated towers.
Commercial Hubs: Configurable as single or double-leaf sets with matching overpanels and side screens, ideal for expansive corporate atriums and industrial facilities.
Responsible procurement is no longer optional. We are deeply committed to environmentally conscious manufacturing processes, delivering products that support your ESG goals while providing uncompromising, long-lasting quality.
FSC® Certified Timber & Eco-Materials: All wood components are sourced from responsibly managed forests, and our low-VOC finishes actively contribute to achieving prestigious LEED and BREEAM building certifications.
ISO Certified Production: Manufactured under rigorous ISO 9001 (Quality) and ISO 14001 (Environmental) management systems, guaranteeing consistent excellence and minimal ecological footprint.
Extended Warranty Protection: Reflecting our absolute confidence in our craftsmanship, select premium configurations are backed by an extensive 10-year warranty, securing your long-term investment.
Partnering with a dedicated manufacturing powerhouse means securing a supply chain that prioritizes your project's success. We combine vast production capacity with meticulous quality control to deliver superior architectural solutions on time and on budget.
Scalable Manufacturing: Our state-of-the-art production facilities are equipped to handle massive volume requirements without compromising on micro-level details.
End-to-End Project Support: From initial architectural specification and technical drawing to final delivery logistics, our dedicated team ensures a frictionless procurement experience.
Bespoke Engineering: We do not just provide off-the-shelf products; our engineering team collaborates to solve unique structural and design challenges specific to your blueprint.
Global Logistics Expertise: Utilizing robust, export-grade packaging and streamlined shipping protocols, we guarantee your doors arrive in pristine condition, precisely when the site is ready.
The high-density timber core offers exceptional screw-holding strength and a traditional, solid feel, making it ideal for heavy-use commercial areas requiring extensive hardware. The mineral or Tectonite cementitious core provides superior thermal insulation and is often utilized when extreme temperature gradients or specific acoustic dampening requirements are prioritized. Both guarantee the full 120-minute fire rating.
To maintain the strict BS 476-22 and EN 1634-1 certifications, all fire-rated glazing and vision panels must be precisely installed in our controlled factory environment. On-site retrofitting compromises the intumescent sealing systems and immediately voids the fire performance warranty and certification.
Our pre-hung frames can be manufactured with custom extension linings or adjustable architraves. During the specification phase, we tailor the hardwood or composite frame depth to perfectly match your exact structural wall dimensions, ensuring a seamless, flush installation regardless of wall variations.
The intumescent strips and smoke seals are discreetly rebated into the edges of the door leaf or the frame. When the door is closed, they are completely hidden from view, preserving the clean, architectural lines and the visual integrity of the chosen finish.
We highly recommend our fully finished options, including factory-applied polyurethane paints, HPL, or lacquered veneers. Factory finishing ensures a flawless, durable surface that is exceedingly difficult to achieve on-site, simultaneously saving your contractors significant time and labor costs.
Absolutely. We utilize precision CNC routing to pre-prep the doors and frames for concealed electronic locks, magnetic strikes, and hidden wire transfers. This ensures seamless integration with your building's security network without compromising the dense fire-retardant core.
