Did you know fire doors can save lives in emergencies? Yet, many don’t understand their ratings. Fire doors are crucial for building safety. They block fire and smoke, protecting occupants and property. In this post, you’ll learn what fire door ratings mean. We’ll explain how ratings affect safety and compliance.
Table of Contents
Fire door ratings, such as 30, 60, 90, 120, or 180 minutes, indicate how long a fire door assembly can withstand fire exposure while maintaining its protective functions. This rating isn’t just about resisting flames; it covers the door's ability to:
Maintain structural integrity (no collapse or opening)
Prevent fire and hot gases from passing through
Limit heat transfer to the non-fire side
For example, a 60-minute fire door assembly must perform all these functions for at least one hour under standardized fire conditions.
In Germany, fire resistance classes follow DIN 4102-2. Here, the rating is shown as "F" plus the number of minutes, such as F30 or F90. This standard combines three main performance criteria:
Load-bearing capacity
Room closure
Thermal insulation
All criteria must be met for the full duration to achieve the classification. The time stages are 30, 60, 90, 120, and 180 minutes. Additionally, the classification may include a building material class:
A: Non-combustible materials (e.g., cement, clay)
B: Combustible materials (e.g., wood, paper)
This helps clarify the fire behavior of the material used.
The European standard DIN EN 13501-2 offers a more detailed classification system. It separates the performance criteria, using individual letters:
R (Resistance): Load-bearing capacity
E (Integrity): Prevents flames and gases from passing through
I (Insulation): Limits heat transfer
For example, an "REI 60" door meets all three criteria for 60 minutes. Time ratings are more granular here, including 15, 20, 30, 45, 60, 90, 120, 180, and 240 minutes.
Additional classifications include:
W: Limits thermal radiation
M: Mechanical stability under impact
This detailed approach allows for more precise fire door specifications.
Feature | DIN 4102-2 (German) | DIN EN 13501-2 (European) |
|---|---|---|
Time Ratings | 30, 60, 90, 120, 180 minutes | 15, 20, 30, 45, 60, 90, 120, 180, 240 minutes |
Performance Criteria | Combined (Load-bearing, Integrity, Insulation) | Separate (R, E, I, plus W, M) |
Classification Detail | Less detailed | More detailed and flexible |
Material Classification | Yes (A, B) | No explicit material class |
The European standard's flexibility allows for tailored fire door solutions but requires more detailed testing and documentation.
Building codes mandate fire door ratings based on the fire resistance of the walls and the function of the door. For instance:
A 1-hour fire-rated wall may require a 45-minute fire door.
A 2-hour wall often demands a 90-minute door.
Codes consider occupancy type, fire compartmentation, and egress requirements. Fire doors must meet or exceed the minimum rating specified by these codes to maintain safety and legal compliance.
Note: When specifying fire doors, always verify the rating matches local building codes and the fire resistance of the surrounding wall to ensure proper fire compartmentation.
A fire door rating applies to the entire fire door assembly, not just the door slab. This assembly includes the door panel, frame, hardware, and seals. Each component must be fire-rated and compatible to meet the overall rating. If any part fails during a fire, the whole assembly fails, compromising safety.
The door slab is the main barrier, often made from fire-resistant materials like mineral cores or steel. The frame holds the door securely in place and must match or exceed the door's rating. Hardware such as hinges, closers, locks, and panic devices help the door function correctly, especially ensuring it closes and latches automatically. Seals, particularly intumescent and gasketing types, prevent smoke and hot gases from passing through gaps.
Frames are critical for fire resistance. Steel frames are common for higher-rated doors (60, 90, 120 minutes). They resist warping and heat damage better than wood and provide strong support. Steel frames often have fire-resistant cores or special designs to limit heat transfer.
Wood frames are usually limited to lower ratings like 20, 30, or 45 minutes. They are solid or composite wood treated to resist fire. Wood frames are less durable under fire conditions and generally not suitable for high-rating doors.
Both frame types must be tested and listed as part of the full fire door assembly. Using a frame with a lower rating than the door can void the entire rating.
Hardware must be fire-rated and listed for the specific door assembly. It’s not just about durability but also maintaining fire protection during a fire.
Door Closers: Ensure the door closes automatically after being opened. Without closers, fire doors may stay open, defeating their purpose.
Hinges: Heavier gauge and often ball-bearing to support the door’s weight and withstand heat without warping.
Locks and Latches: Must be self-latching to keep the door securely closed. Deadbolts alone are insufficient.
Panic Devices: Allow quick egress but still secure the door during a fire. Must be fire-rated and self-latching.
If any hardware fails, the door may not close or latch properly, allowing fire and smoke to spread.
Glazing in fire doors must also be fire-rated. Common types include:
Wired Glass: Contains wire mesh, offers up to 45-minute ratings.
Ceramic Glass: Provides higher fire resistance, up to 90 minutes or more.
Intumescent Glass: Expands and turns opaque under heat, offering excellent fire and heat protection.

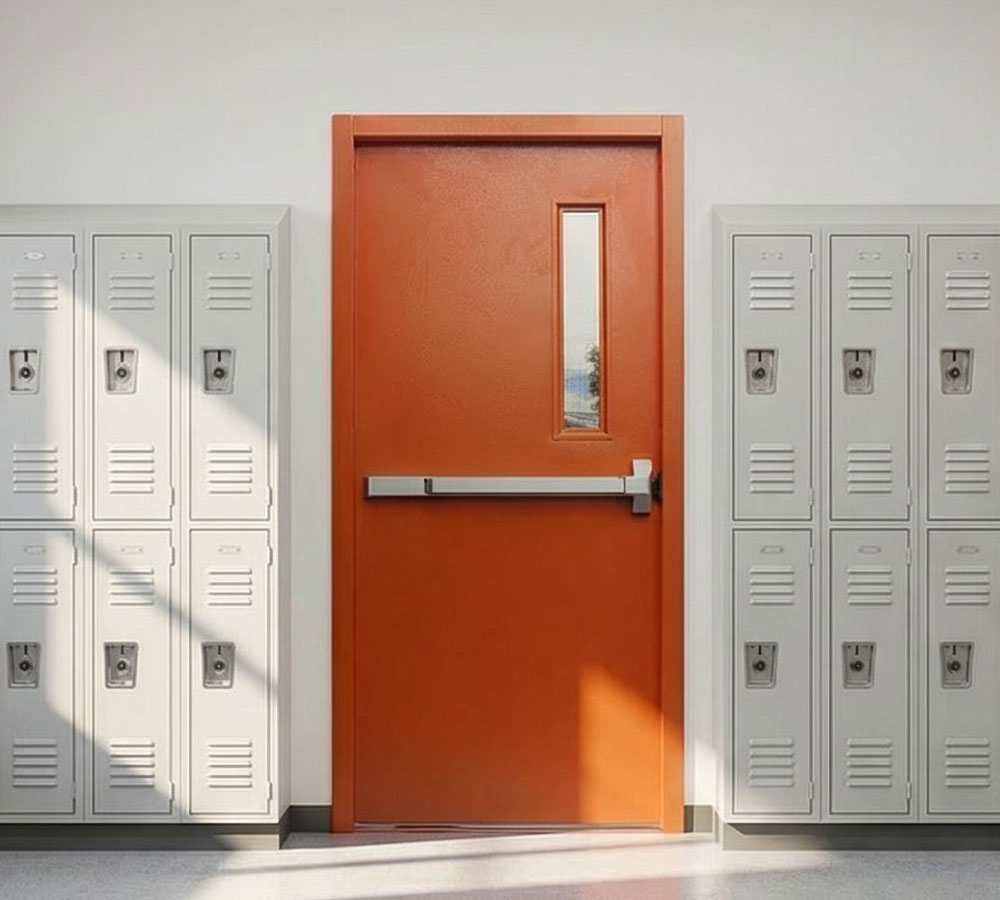

Vision panels are limited in size based on the door rating. Larger panels reduce fire resistance, so higher-rated doors allow smaller or no glazing.
Seals play a vital role in stopping smoke and hot gases, which are often more deadly than flames.
Intumescent Seals: Expand when heated to fill gaps between door and frame, blocking fire and smoke.
Gasketing Seals: Made from silicone or similar materials, prevent smoke passage under normal conditions.
Doors with an “S” label include these seals and meet smoke control standards. Proper seal installation is essential; even small gaps can let smoke through, endangering occupants.
Tip: Always verify that every component of a fire door assembly—frame, hardware, glazing, seals—is fire-rated and properly installed to maintain the door’s full fire protection rating.
Modern fire door testing uses positive pressure methods like UL 10C and NFPA 252. This simulates real fire conditions where hot gases push flames and smoke through gaps at the top of openings. Positive pressure testing forces manufacturers to design doors with tighter seals and intumescent strips that expand under heat. This ensures doors resist fire and smoke penetration more effectively than older neutral pressure tests.
Fire doors undergo multiple tests to ensure performance:
Integrity Test: Door must stay intact without cracks or openings that let flames or gases through.
Temperature Rise Test: For doors rated 60 minutes or more, the temperature on the non-fire side must stay below limits (usually 250°F average rise, 450°F max at any point). This protects evacuees from heat.
Hose Stream Test: After fire exposure, a powerful water stream hits the door to simulate firefighting efforts. The door must resist impact without damage or displacement.
These tests confirm the door’s ability to protect occupants during and after a fire.
EN 16034:2014 sets European requirements for fire and/or smoke control doors. It covers:
Fire resistance classifications like EI30, EI60, EW30, and E90, indicating integrity, insulation, and radiation control.
Smoke control ratings (Sa for ambient temperature, S200 for ambient plus 200°C).
Self-closing durability, classified from C0 to C5 based on cycles and closing force.
Testing includes fire resistance (EN 1634-1), smoke control (EN 1634-3), and self-closing durability (EN 1191).
Manufacturers must provide documentation like Declaration of Performance (DoP), CE marking, installation instructions, and maintenance guidelines. This ensures consistent safety and compliance across Europe.
Smoke control is critical since smoke causes most fire-related deaths. Testing measures leakage through the door at ambient temperature (Sa) and at 200°C (S200). Doors passing these tests include gasketing and intumescent seals to block smoke and hot gases. This helps maintain safe evacuation routes and limits smoke spread between compartments.
Fire doors must close reliably every time. EN 16034 requires testing self-closing devices through many cycles to ensure durability. The classification ranges from C0 (no requirement) to C5 (severe use). Properly functioning closers prevent doors from being left open, which would compromise fire safety.
Authenticating fire doors is essential. Look for third-party certification labels or metal plates on the door edge or frame. Recognized agencies include UL, Warnock Hersey International (WHI), and Intertek. Labels show:
Minute rating (e.g., 60 MIN, 90 MIN)
Smoke control designation (S suffix)
Testing standards met
Verify labels are legible and correspond to the door’s installation location and wall rating. Absence or damage to labels is a red flag. Always confirm all components—door slab, frame, hardware, seals—are listed and compatible to maintain the full fire rating.
Tip: Always check for legitimate certification labels and ensure fire door components match their listings to guarantee true fire protection and code compliance.
Installing a fire door correctly is crucial. The door assembly must fit securely within the fire-rated wall opening. The frame needs firm anchoring to the wall structure using approved fasteners. Gaps between the frame and wall must be sealed with fire-stopping materials like mineral wool and fire-rated caulk. This fire-stopping prevents fire and smoke from bypassing the door assembly through openings. Improper fire-stopping is a common cause of fire door failure during a fire.
Clearances around the door slab are vital. Typically, a 1/8 inch (3 mm) gap is allowed at the top and sides, with up to 3/4 inch (19 mm) at the bottom for standard doors. Smoke-rated doors often require smaller bottom clearances, usually around 3/8 inch (9.5 mm). These gaps ensure the door closes properly but do not allow smoke or flames to pass through.
Hardware installation follows strict guidelines. Hinges, closers, locks, and panic devices must be installed per manufacturer instructions and fire listings. Using incorrect fasteners or misaligning hardware can cause the door to fail in a fire. Every component must be compatible with the door's rating to maintain full protection.
Maintaining proper clearances is essential for fire door performance. Excessive gaps let smoke and fire through, while too tight gaps prevent smooth closing. The standard clearance around the door frame is about 1/8 inch on the sides and top. The bottom clearance depends on the type of door and smoke rating but usually does not exceed 3/4 inch.
Inspectors often use a 1/8-inch gauge or even a credit card to check these gaps during inspections. If clearances are out of tolerance, the door may fail to close tightly, allowing smoke or fire to spread.
NFPA 80 mandates yearly fire door inspections to ensure ongoing safety. Certified inspectors examine the entire door assembly, including the slab, frame, hardware, and seals. Key inspection points include:
Presence and legibility of certification labels
Damage to door slab, frame, or hardware
Proper operation: smooth closing and positive latching
Absence of unauthorized modifications
Correct clearances around the door
Hardware functionality and secure attachment
No obstructions preventing closure
These inspections catch problems early, preventing failures during emergencies.
Typical problems found in fire door inspections include:
Missing or illegible certification labels
Warped or damaged door slabs or frames
Broken or missing intumescent seals and gasketing
Malfunctioning or missing door closers causing doors to stay open
Loose or missing hardware screws
Excessive clearances allowing smoke passage
Unauthorized drilling or modifications voiding fire ratings
Propped open doors defeating fire protection
Addressing these issues promptly is vital for safety and code compliance.
Repairs must use only listed and compatible fire-rated components. Replacing hinges, closers, locks, or glazing with non-listed parts voids the fire rating. Intumescent seals and gasketing must be replaced with approved materials matching the original listing.
Regular maintenance includes lubricating hinges, adjusting door closers for proper closing speed and force, and cleaning seals to ensure they function correctly. Documentation of all maintenance and repairs is important for compliance records.
Propping fire doors open is a major safety risk. It disables the door’s ability to contain fire and smoke, compromising the entire fire barrier system. If doors need to remain open for operational reasons, they must have approved hold-open devices linked to the fire alarm system. These devices automatically release and close the door when the alarm sounds.
Educating building occupants and staff about the dangers of propping fire doors open is essential. Regular inspections should check for this violation and ensure doors remain in their protective closed position.
Tip: Always ensure fire doors are installed with proper fire-stopping and clearances, and never prop them open to maintain their full protective function.
Fire doors are part of a building’s fire barrier system. Their fire protection rating must relate directly to the fire resistance rating of the wall they’re installed in. A fire door’s rating can never exceed the wall’s rating — the wall sets the maximum protection level. For example, a door installed in a 2-hour fire-rated wall cannot have a 3-hour rating; it must be equal or less.
This relationship ensures the entire fire barrier works as a unit. If the door’s rating is too low, fire and smoke can breach the wall at the opening. If the door’s rating is too high, it may be unnecessarily costly or heavy without added safety benefit.
A common rule of thumb helps match fire door ratings to wall ratings:
Fire door rating is typically one-third (1/3) or one-quarter (1/4) of the wall’s fire resistance rating.
For example:
Wall Rating | Typical Fire Door Rating (1/3 Rule) | Typical Fire Door Rating (1/4 Rule) |
|---|---|---|
1 hour (60 min) | 20 min or 45 min | 15 min or 20 min |
2 hours (120 min) | 60 min or 90 min | 45 min or 60 min |
3 hours (180 min) | 90 min or 120 min | 60 min or 90 min |
This isn’t a strict code but a guideline. Exceptions exist, depending on occupancy, door function, and local codes. For instance, some corridors in 1-hour walls allow 20-minute doors if smoke control is adequate.
Fire door ratings depend on the wall type and fire zone:
1-Hour Fire-Rated Walls: Common in corridors, tenant separations, or between different occupancies. Doors often require 45-minute ratings but sometimes 20-minute doors suffice if smoke seals are present.
2-Hour Fire-Rated Walls: Found in stairwells, elevator shafts, or hazardous rooms. Doors usually require 90-minute ratings to maintain vertical fire barriers.
3-Hour Fire-Rated Walls: Used in high-risk areas like transformer vaults or between buildings. Doors here often need 180-minute ratings for maximum protection.
Each fire zone has specific requirements based on the risk level, occupancy, and egress needs.
Occupancy type affects fire door ratings because different buildings pose different fire risks and occupant vulnerabilities:
Assembly (A): High occupant loads, unfamiliar occupants. Requires robust fire doors for safe egress.
Business (B): Moderate risk, occupants familiar with building. Fire door ratings balanced for safety and function.
Educational (E): Children present, high vulnerability. Strict fire door and smoke control requirements.
Healthcare (I-2): Non-ambulatory occupants, requires stringent fire and smoke protection, often higher door ratings.
Residential (R): Emphasizes separation between units and safe egress, fire door ratings vary by building height and type.
Codes often specify minimum fire door ratings based on occupancy, influencing the choice of door rating for each opening.
The AHJ (local fire marshal, building official, or inspector) is the final authority on fire door rating requirements. They interpret codes, local amendments, and specific project conditions.
Before finalizing fire door specifications, always consult the AHJ with:
Architectural plans showing wall fire ratings
Occupancy classifications
Fire safety plans
This ensures compliance, avoids costly rework, and confirms the door rating matches both the wall and local code.
Tip: Always verify fire door ratings against wall fire resistance and consult the AHJ early to ensure code compliance and avoid costly changes during construction.
Corridor doors often serve as the first line of defense in fire compartmentation. They protect escape routes, ensuring occupants can exit safely. For these doors, 20- and 45-minute fire ratings are common.
20-Minute Doors: Used mainly for room-to-corridor openings where fire resistance is moderate but smoke control is critical. These doors usually have an “S” designation, meaning they include smoke seals to limit smoke migration. They must be self-closing to maintain safety.
45-Minute Doors: Required when the corridor wall has a 1-hour fire rating. These doors provide a stronger barrier against fire and smoke spread. Like 20-minute doors, they must close automatically and latch securely.
Choosing between 20 and 45 minutes depends on the corridor's fire rating and local codes. Over-specifying a 45-minute door where 20 minutes suffice adds cost and weight unnecessarily.
Stairwells are vital for vertical egress during fires. Fire doors here must offer longer protection to keep stairwells safe from smoke and flames.
60-Minute Doors: Common for stairwells in buildings up to four stories with 1-hour rated walls. They match the wall rating, providing consistent protection.
90-Minute Doors: Used in taller buildings or where walls have 2-hour ratings. These doors often include temperature rise ratings, limiting heat transfer to protect evacuees.
These doors usually have fire-rated vision panels and self-closing devices linked to fire alarms. This allows daily convenience but ensures closure during emergencies.
Rooms with high fire risk, like mechanical or chemical storage areas, require robust fire doors.
90-Minute Doors: Installed in 2-hour fire-rated walls, common in mechanical rooms or electrical closets. They contain fire spread effectively.
120-Minute Doors: Reserved for severe hazard zones like transformer vaults or chemical storage. Installed in 3-hour or higher rated walls, they offer maximum protection.
These doors are heavier, with mineral cores and heavy steel frames. Hardware is specially rated for prolonged fire exposure.
While higher ratings offer more fire resistance, they come with trade-offs:
Weight and Operation: Heavier doors need stronger closers and hinges, which can make opening harder. This may challenge accessibility for some users.
Maintenance: High-rated doors require more upkeep to ensure hardware functions properly.
User Behavior: Difficult doors may be propped open, defeating fire safety.
Designers must balance safety, usability, and code requirements. Sometimes a lower-rated door with proper smoke seals and self-closing hardware offers better overall protection.
Specifying a fire door rating beyond code requirements can cause:
Higher Material Costs: Thicker slabs, specialized cores, and steel frames increase expenses.
Installation Complexity: Heavier doors need more labor and stronger supports.
Operational Issues: Difficulty opening, increased wear on hardware, and potential non-compliance with accessibility standards.
Over-specification wastes budget without proportional safety gains. Always match door ratings to actual needs, wall ratings, and occupancy risks.
Tip: Always align fire door ratings precisely with wall fire resistance, occupancy type, and door function to optimize safety, cost, and usability.
Understanding fire door ratings is essential for effective fire protection and code compliance. Proper selection, installation, and maintenance ensure doors perform as intended during emergencies. European standards and evolving building codes emphasize detailed testing and certification for enhanced safety. Building owners and professionals should consult authorities and choose fire doors that match wall ratings and occupancy needs. Nanchang Zhuohong Fire Equipment Co., Ltd. offers reliable fire doors designed for durability, safety, and compliance, providing great value to protect lives and property.
A: Fire doors are specially designed doors that resist fire and smoke for a specified time, like 30, 60, or 90 minutes. Their ratings indicate how long they maintain integrity, prevent flames and gases, and limit heat transfer during a fire.
A: Fire doors protect occupants by containing fire and smoke, allowing safe evacuation and limiting property damage. They are essential for meeting building codes and ensuring fire compartmentation.
A: Fire door prices vary by rating, materials, and hardware. Higher-rated doors (90+ minutes) with steel frames and special seals cost more than lower-rated wood doors.
A: Regular inspections check labels, hardware, seals, and clearances. Maintenance includes lubricating hardware and replacing damaged components with listed parts to keep fire doors effective.
A: Repair fire doors promptly using certified fire-rated parts. Doors must close and latch automatically; if hardware fails, it compromises fire protection and must be fixed immediately.
