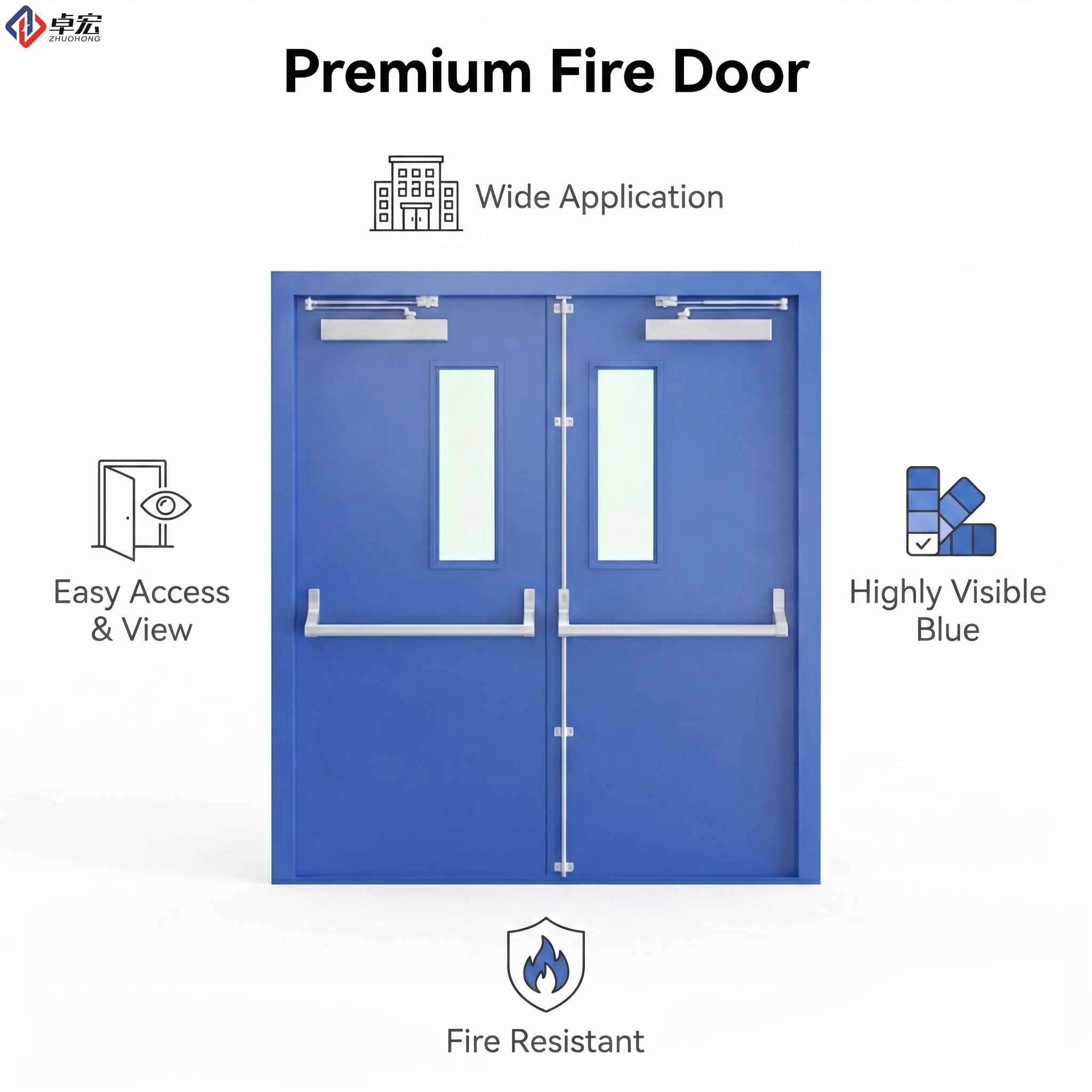

FD60 double leaf fire door designed for commercial projects, wide openings, and high-traffic building areas
Provides 60-minute fire resistance to support fire separation and evacuation route protection

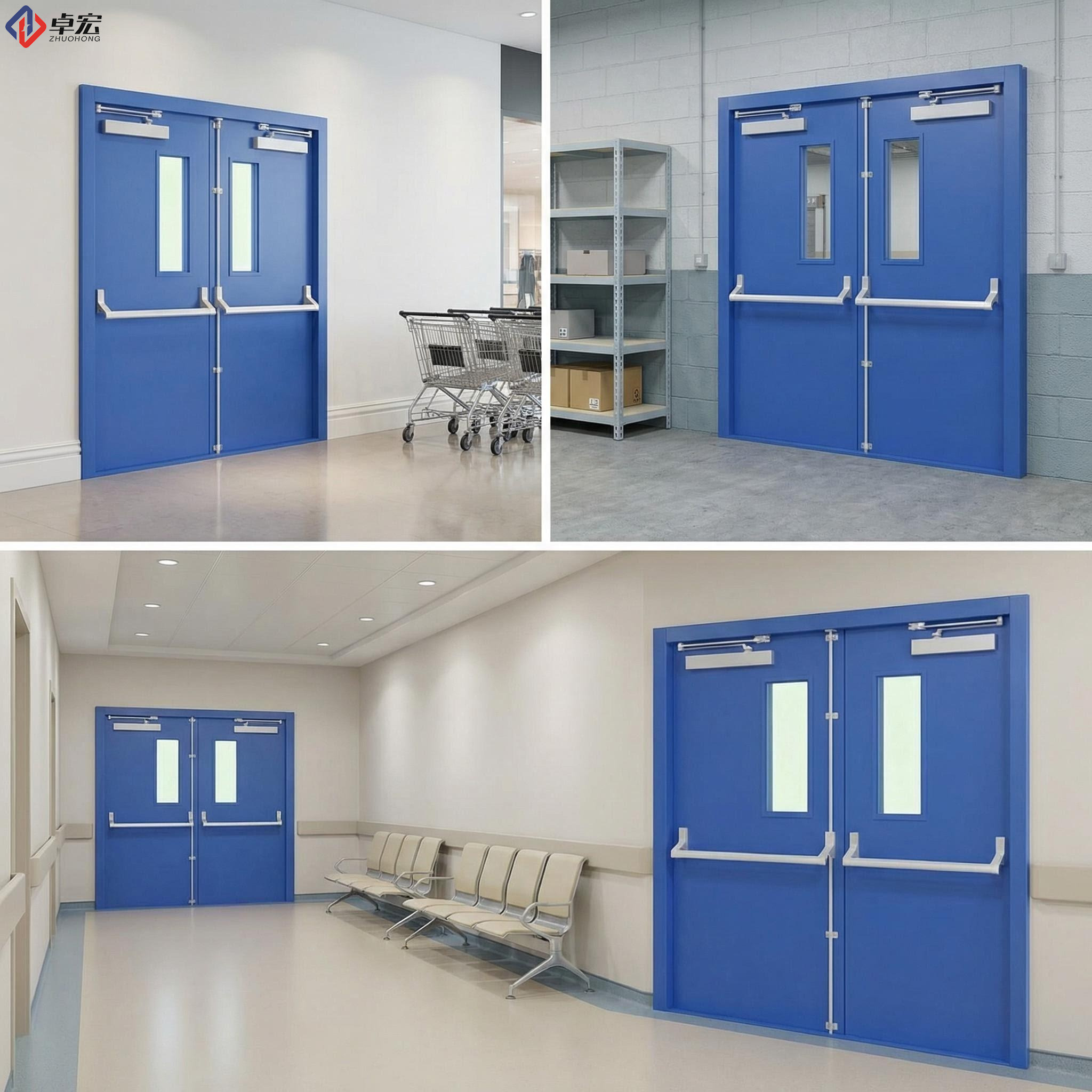

Suitable for shopping centers, office buildings, hotels, hospitals, schools, warehouses, and public facilities
Double leaf design is suitable for wider access points requiring larger clear opening width

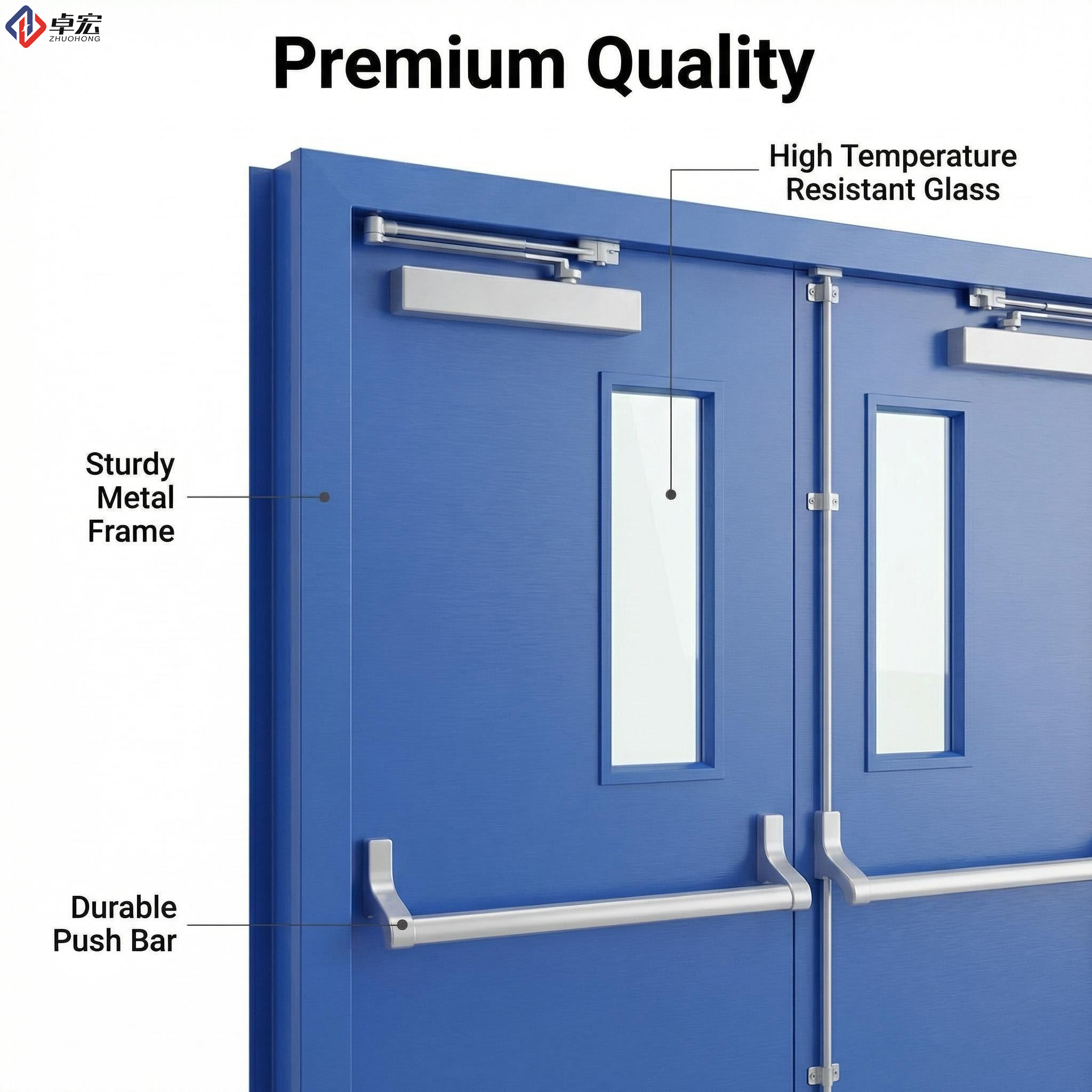

Manufactured with galvanized steel or cold-rolled steel for stable strength and long-term project use
Fire-resistant core and intumescent strips help slow the spread of flames, heat, and smoke
Can be supplied with fire-rated locks, panic push bars, door closers, coordinators, fire hinges, and smoke seals
Active and inactive leaf configuration can be adjusted according to project traffic and opening requirements
Powder-coated or painted surface supports corrosion resistance and long-term appearance
Custom size, frame type, opening direction, surface color, and hardware preparation are available
Suitable for contractors, developers, distributors, and commercial building procurement teams
Door schedule, wall opening size, frame detail, hardware layout, and project standard can be confirmed before production
Item | Specification |
|---|---|
Product Name | FD60 Double Leaf Fire Door for Commercial Projects |
Fire Rating | FD60 / 60 Minutes |
Door Type | Double Leaf Fire Door |
Application | Commercial Projects, Wide Openings, Corridors, Service Areas, Public Buildings, Emergency Routes |
Door Leaf Material | Galvanized Steel / Cold-Rolled Steel |
Core Material | Fire-Resistant Core, such as Perlite Board, Mineral Wool, or Other Approved Core Options |
Door Leaf Thickness | 45mm - 55mm, customizable by project requirement |
Steel Sheet Thickness | 0.8mm - 1.2mm Door Leaf / 1.2mm - 1.5mm Door Frame, customizable |
Standard Size | 1200mm - 1800mm Width x 2100mm Height, customizable according to door schedule |
Frame Type | Steel Frame / Welded Frame / Knock-Down Frame / Customized Frame |
Leaf Configuration | Active Leaf + Inactive Leaf / Equal Leaf / Unequal Leaf |
Surface Finish | Powder Coating, Primer Finish, Painted Finish, or Customized RAL Color |
Sealing System | Intumescent Strip, Smoke Seal, Astragal Seal, Optional Acoustic Seal or Threshold Seal |
Hardware Options | Panic Push Bar, Fire-Rated Lock, Door Closer, Door Coordinator, Flush Bolt, Fire Hinges, Lever Handle, Kick Plate |
Opening Direction | Left Hand / Right Hand, Inward / Outward Opening |
Color Options | White, Grey, Black, Red, Blue, or Customized RAL Color |
Suitable Buyers | Contractors, Developers, Door Distributors, Project Buyers, Commercial Building Procurement Teams |
Order Type | Bulk Order / Project Supply / OEM / ODM |
Standards | WH, EN, UL 10C, GB, or Other Project-Specified Standards Available Upon Confirmation |
Commercial buildings often include wider openings than standard rooms or apartment units. These areas may need larger access width for people flow, equipment movement, service access, or emergency evacuation. A double leaf fire door is often selected when a single leaf door cannot provide enough clear opening width.
The FD60 Double Leaf Fire Door for Commercial Projects is designed for commercial buildings that require 60-minute fire resistance and reliable daily operation. It is suitable for shopping centers, office buildings, hotels, hospitals, schools, warehouses, public facilities, and mixed-use commercial projects.

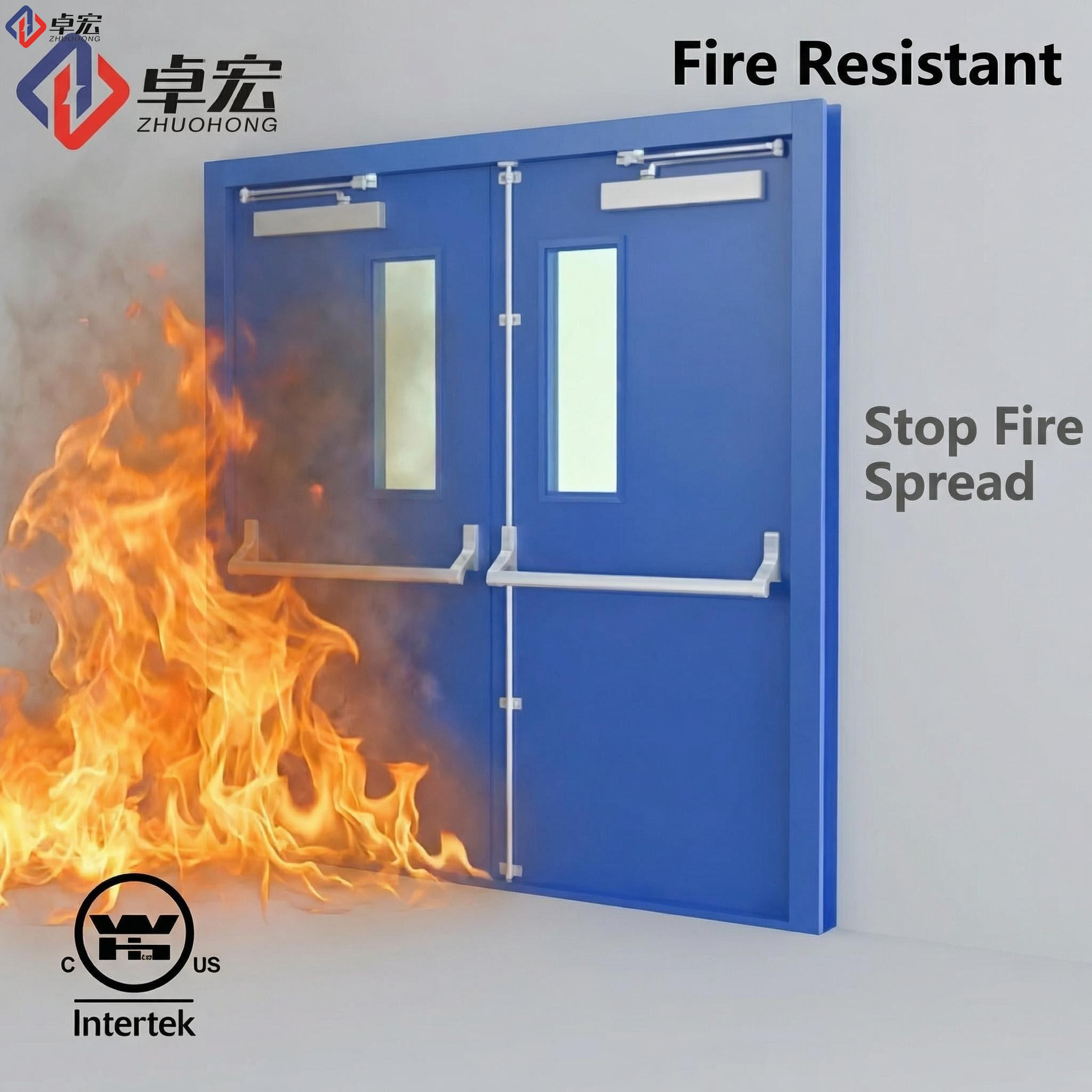

During a fire situation, the fire-resistant core, intumescent strips, and sealing system help slow the spread of flames, heat, and smoke. For project buyers and contractors, this type of door is especially useful in wide corridors, service zones, emergency routes, and building areas where both fire separation and large access capacity are required.
The main difference between this product and a standard single leaf fire door is the wider opening capacity. The double leaf structure can be configured with one active leaf and one inactive leaf, or with equal-size leaves depending on the project requirement.
For daily use, the active leaf can handle normal traffic. When a wider opening is needed, the inactive leaf can be opened to allow larger movement, such as equipment transfer, maintenance access, or higher pedestrian flow. This makes the door practical for commercial projects where access requirements may change during operation.
Before production, the clear opening width, active leaf size, inactive leaf size, opening direction, frame type, and hardware arrangement should be confirmed according to the project door schedule. This helps reduce installation mistakes and ensures the door matches the actual site opening.
Double leaf fire doors require more detailed hardware coordination than single leaf doors. Besides standard fire-rated locks, hinges, and door closers, this product may require door coordinators, flush bolts, astragal seals, panic push bars, or double-door closing devices.
These hardware details are important because both leaves must close properly to maintain fire-rated performance. For emergency exits or public building areas, panic hardware can also be configured according to the evacuation design. Smoke seals and intumescent strips can be added around the frame and meeting stile to improve fire and smoke control.
For contractors and distributors, confirming the hardware brand, installation position, opening sequence, and leaf configuration before production helps avoid site modification and improves project delivery efficiency.
This FD60 double leaf fire door is suitable for commercial contractors, building developers, door distributors, project buyers, and procurement teams handling large commercial buildings. It can be used in new construction, renovation projects, fire door replacement programs, and commercial door package supply.
For bulk project orders, buyers can confirm door quantities, opening sizes, fire rating, frame types, surface colors, hardware sets, packing method, and delivery sequence before production. A clear confirmation process is especially important for commercial projects because different floors and zones may require different door sizes and hardware configurations.
This product helps project teams combine fire protection, wide access, and practical daily operation in one fire-rated door solution.
We deeply understand the logistical challenges associated with large-scale international procurement. Our optimized knock-down (KD) frame packaging significantly increases shipping container load capacity, effectively driving down your ocean freight costs. Utilizing multi-layered protective wrapping and reinforced transit pallets, we guarantee that your volume orders arrive at the destination site in pristine, damage-free condition, ready for immediate deployment.
Selecting the right manufacturing partner is absolutely crucial for the success of your large-scale construction and commercial development projects. We do more than just supply doors; we provide comprehensive, engineered safety solutions designed to elevate your operational efficiency and protect your capital investments.
Our state-of-the-art production facilities leverage automated precision engineering, ensuring that every single unit in a high-volume order maintains the exact same flawless standard. From the initial raw material selection to the final rigorous quality assurance check, our processes are designed to deliver uncompromising reliability and excellence.
Direct Manufacturer Advantage: By eliminating intermediaries, we provide highly competitive pricing structures for volume procurement, maximizing your project's overall return on investment.
Dedicated Project Support: Our team of technical specialists works closely with your architects and contractors to provide tailored CAD drawings, detailed hardware scheduling, and expert compliance consultation.
Reliable Global Fulfillment: With streamlined production cycles and robust international logistical networks, we ensure your materials are delivered exactly when your construction timeline demands them.
Unwavering Quality Control: Every door undergoes rigorous acoustic, thermal, and mechanical testing before leaving our facility, guaranteeing out-of-the-box perfection and immediate operational readiness.
Yes. This FD60 double leaf fire door is designed for commercial projects, wide openings, corridors, service areas, emergency routes, and public building access points. It provides 60-minute fire resistance and supports fire separation in high-traffic commercial environments.
A double leaf fire door is suitable when the opening is wider than a standard single leaf door or when the project requires larger access width. It is often used for commercial corridors, service entrances, equipment rooms, public access areas, and emergency routes.
Yes. The active leaf and inactive leaf can be customized as equal leaves or unequal leaves according to the project door schedule. Before production, we recommend confirming the clear opening size, traffic requirement, opening direction, and hardware configuration.
Common hardware includes fire-rated locks, panic push bars, door closers, fire hinges, flush bolts, door coordinators, astragal seals, smoke seals, lever handles, and kick plates. The final hardware set should be confirmed based on the building function and project standard.
Before ordering, please confirm the fire rating, opening size, wall thickness, frame type, active and inactive leaf size, opening direction, hardware layout, surface finish, sealing requirement, and project standard. These details help reduce installation mistakes and improve project delivery efficiency.
The product can be prepared according to project requirements. Available standard options may include WH, EN, UL 10C, GB, or other project-specified standards. Please confirm the required standard before ordering so the technical documents and product configuration can match the project needs.
