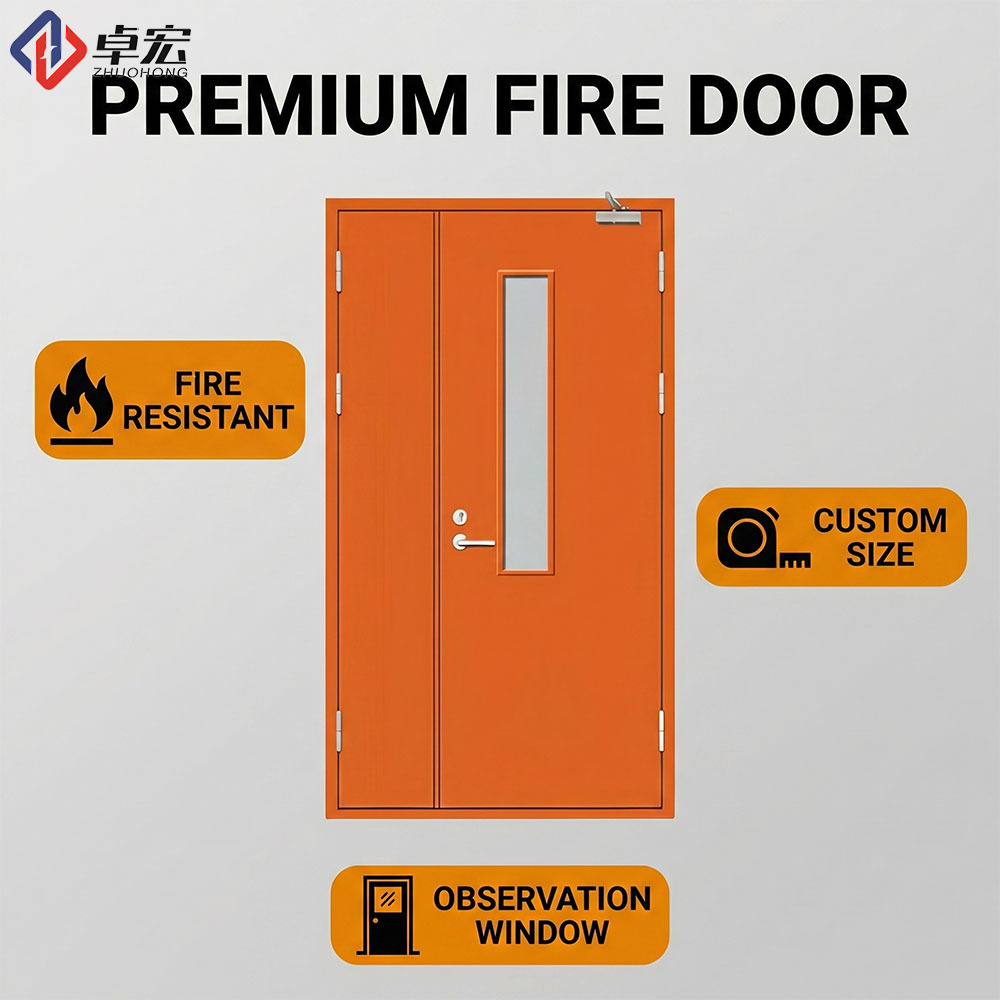

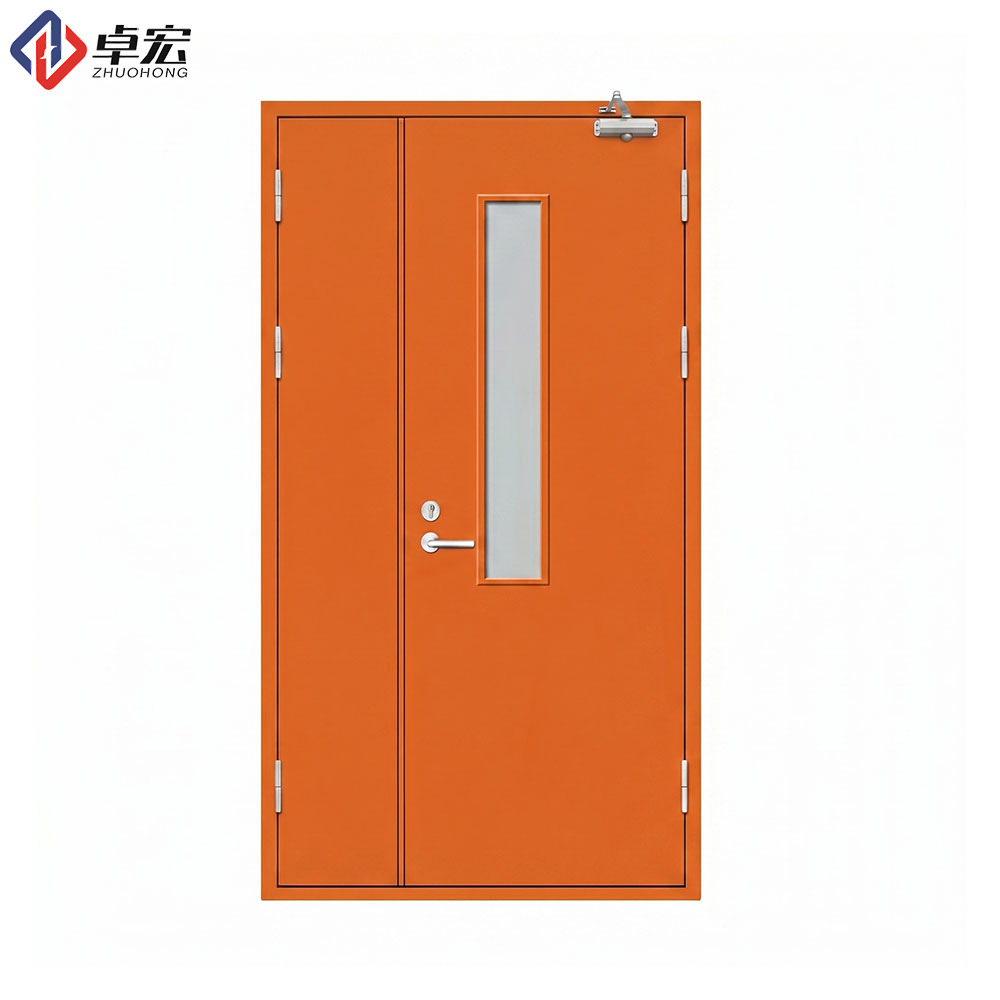

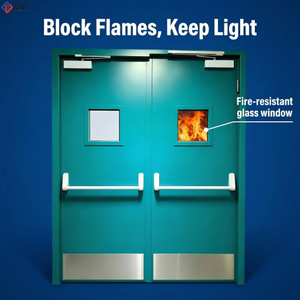

FD60 Steel Fire Doors with Vision Panels offer a robust fire-resistant solution for commercial and industrial applications, combining safety with visibility. These doors are engineered to provide 60 minutes of fire protection while allowing natural light and visual monitoring through integrated vision panels.
| Availability: | |
|---|---|
| Quantity: | |
When safeguarding human life and protecting valuable property, compromise is never an option. The FD60 Steel Sound Insulation Fire Door Sets are meticulously engineered to provide an impenetrable barrier against raging flames, lethal smoke, and disruptive noise. Running your hand along the flawlessly powder-coated steel surface reveals a robust, seamless craftsmanship designed to withstand the relentless wear and tear of high-traffic commercial environments. Beneath this sleek exterior lies a formidable high-density mineral core, offering exceptional thermal resistance that keeps corridors safe and structurally intact during extreme heat emergencies.
Beyond its critical life-saving capabilities, this door set actively transforms interior environments. By integrating superior acoustic insulation, it effectively silences the chaotic din of busy hallways, ensuring that hotel guests enjoy undisturbed rest, hospital patients recover in absolute tranquility, and office professionals maintain deep focus. Every component, from the heavy-duty hinges to the precision-engineered door closers, operates with a reassuringly solid, quiet closure. The satisfying, heavy click of the latch engaging speaks volumes about the manufacturing excellence behind the product. It is a tactile reminder of security and quality that commercial contractors, architectural specifiers, and facility managers can trust implicitly for their most demanding structural projects.
Precision engineering requires transparent, rigorous data. The following specifications outline the exact technical parameters of our FD60 Steel Sound Insulation Fire Door Sets. Every metric has been validated through stringent international testing protocols to ensure that architects, engineers, and procurement specialists can specify these units with absolute confidence. From the core materials to the finishing touches, these parameters guarantee compliance with global building codes and superior daily operational performance.
Parameter Category | Specification Details |
|---|---|
Product Name | FD60 Steel Sound Insulation Fire Door Sets |
Fire Rating | FD60 (60 minutes fire resistance) |
Main Material | Galvanized Steel / 304 Stainless Steel |
Internal Filling | Fireproof Perlite / High-density mineral fireproof core |
Acoustic Performance | 33dB - 45dB |
Thermal Insulation | Fully Insulated Doorsets |
Surface Treatment | Powder Coated / Custom RAL colors supported |
Hardware Accessories | Standard fire hinges, door closer, fire lock, intumescent smoke seal |
Vision Panel | Optional fire-rated glass vision panel (max 15% of door area) |
International Certifications | BS 476 Part 22, EN 1634-1, UL 10C, CE |

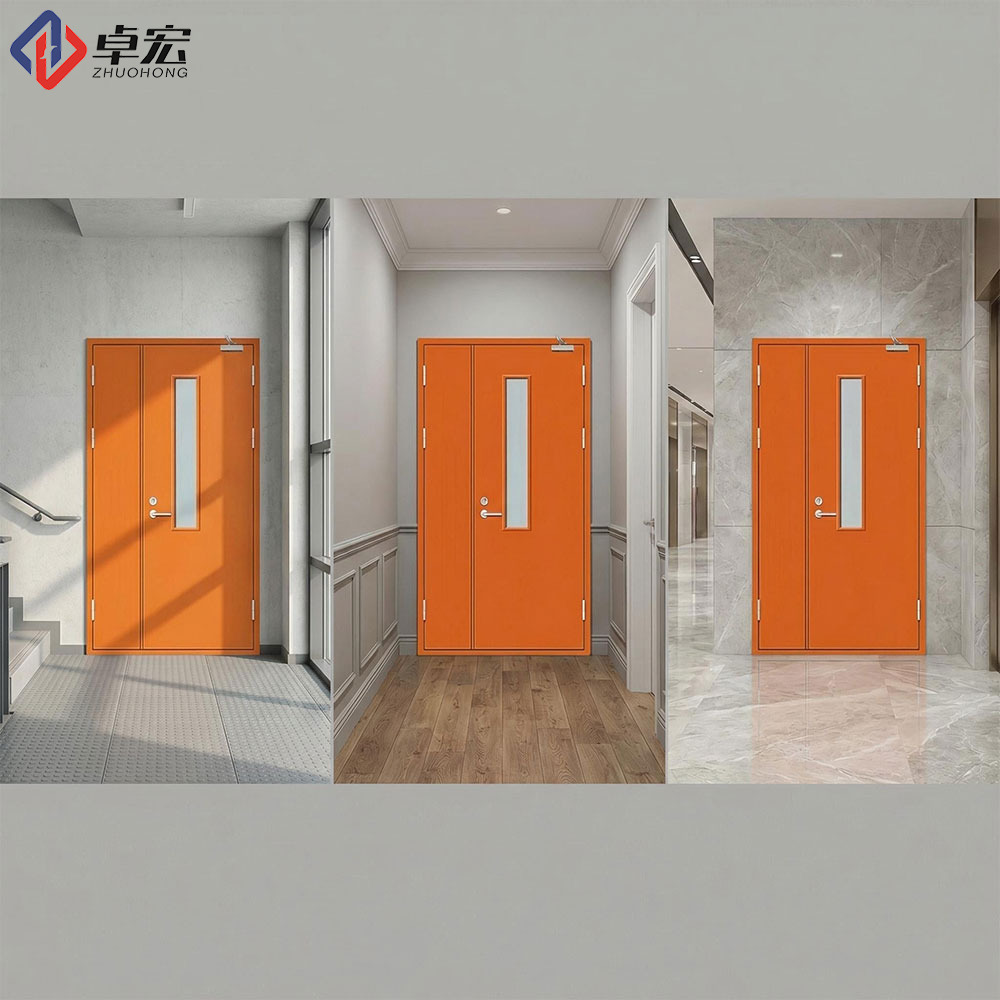

Applicable Scenarios | Hotels, hospitals, schools, apartments, commercial office buildings & industrial facilities |
Our engineering team has focused on delivering a product that solves real-world architectural challenges. By combining life-safety compliance with environmental comfort, these door sets elevate the standard of commercial building interiors.
Built to endure the harshest conditions, the heavy-gauge steel construction prevents warping, sagging, or degradation over time. This ensures that the doors remain fully operational and aesthetically pleasing even after thousands of cycles in high-traffic corridors.
Resists dents, scratches, and impact damage
Maintains perfect alignment within the frame
Reduces the frequency of maintenance and replacement
Fire is only one part of the danger; toxic smoke inhalation is often the greater threat. The integrated intumescent sealing system remains dormant during normal operation but reacts instantly to extreme heat, expanding to hermetically seal the room.
Blocks lethal cold and hot smoke
Prevents the spread of toxic gases
Ensures clear, breathable evacuation routes for occupants
The fully insulated doorset design does more than block fire; it acts as a formidable thermal barrier. This feature significantly reduces heat transfer between different zones within a building, aiding in centralized climate control.
Lowers HVAC operational costs
Maintains consistent ambient temperatures in adjacent rooms
Contributes to overall building energy efficiency ratings
To fully understand the value proposition of the FD60 series, it is essential to explore the multi-dimensional engineering that defines its performance. Each aspect has been optimized to meet the exacting standards of modern commercial architecture.
Delivering a true, verifiable 60-minute (FD60) fire resistance rating, this product is strictly certified under BS 476, EN 1634-1, and UL international fire safety protocols. In the event of a fire, it effectively halts the spread of flames, buying crucial golden time for personnel evacuation and emergency rescue operations, ensuring your architectural projects pass stringent fire safety inspections flawlessly.
Guaranteed 60 minutes of structural integrity under extreme heat
Globally recognized certifications for international project compliance
Facilitates seamless building code approvals and safety sign-offs
Addressing the high demand for spatial privacy in commercial environments, the door body delivers professional-grade acoustic insulation ranging from 33dB to 45dB. Coupled with a fully insulated thermal structure, it perfectly resolves the dual requirements for a silent environment and energy conservation in demanding locations like hotel suites, hospital wards, and educational facilities.
Dramatically reduces airborne noise transmission
Creates a serene, confidential environment for occupants
Stops thermal bridging, enhancing interior comfort
Utilizing high-yield galvanized steel or premium 304 stainless steel for the face panels, and housing a core of flame-retardant perlite or high-density mineral materials, the door is virtually indestructible. It is anti-corrosive, rust-proof, and highly impact-resistant, easily managing the high-frequency wear and tear of commercial and industrial environments while boasting an exceptionally long service life.
Immune to moisture-induced rust and degradation
Core materials will not settle, degrade, or lose efficacy over time
Designed for decades of continuous, heavy-duty operation

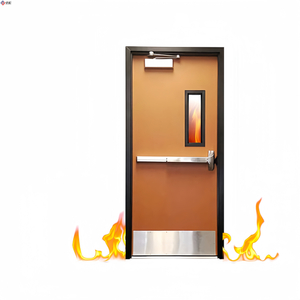

The sets come fully equipped with fire-certified, heavy-duty hardware, including robust fire hinges, precise door closers, and panic escape locks. The critical interface between the door leaf and frame features heat-expanding fire and smoke seals. Upon exposure to high temperatures, these seals automatically expand to plug any gaps, ensuring zero leakage of lethal hot or cold smoke and toxic fumes.
Pre-machined for exact hardware alignment and smooth operation
Self-closing mechanisms ensure doors are never left dangerously ajar
Intumescent strips require zero maintenance while offering life-saving protection

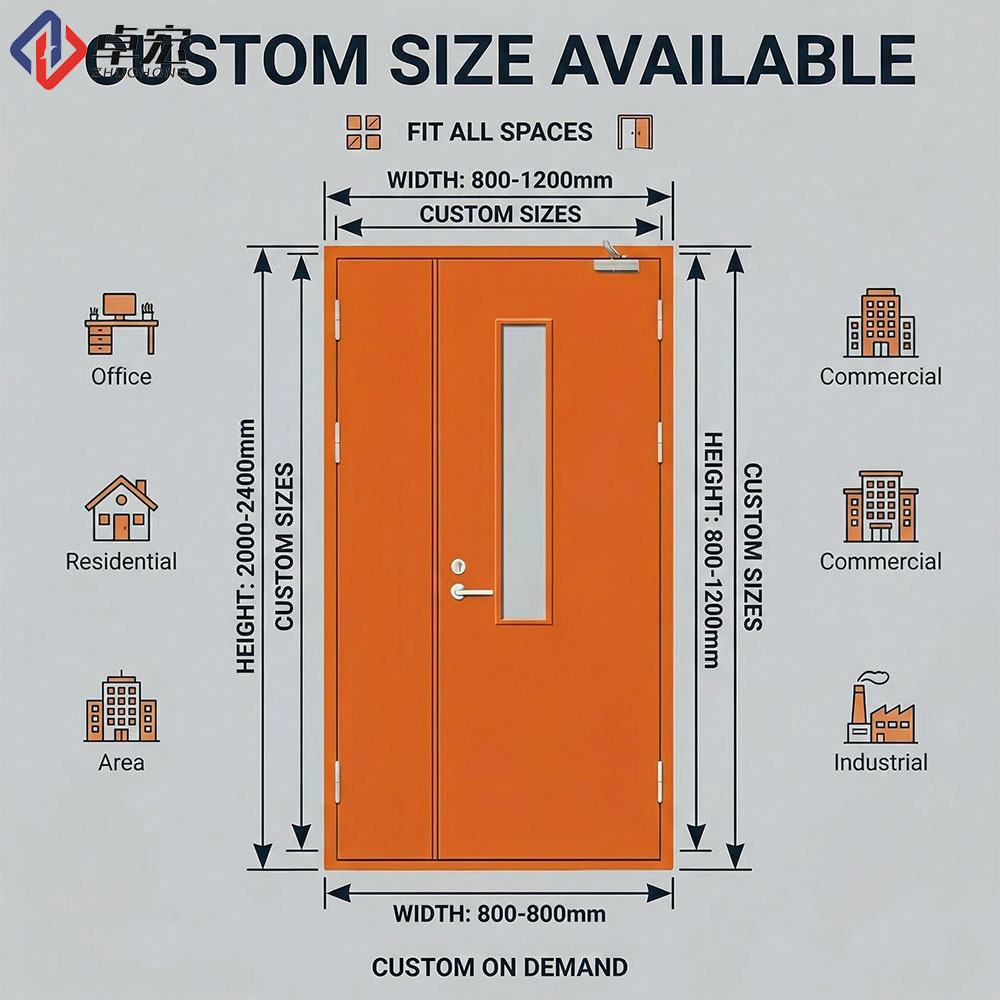

Shattering the stereotype of bulky, unattractive fire doors, this series supports non-standard size customization and a vast array of RAL color powder coatings. Clients can opt for fire-rated glass vision panels without sacrificing an ounce of fire safety, allowing the doors to blend flawlessly into sophisticated modern commercial and public building aesthetics.
Exact sizing for bespoke architectural openings
Flawless color matching for interior design continuity
Vision panels allow for natural light transmission and visual security checks
Our manufacturing workflow is strictly audited by authoritative third-party institutions like SGS and TUV, guaranteeing that every single door meets our exacting standards. We provide commercial buyers with a comprehensive, one-stop engineering solution—from deep blueprint analysis and custom fabrication to secure logistics and professional installation guidance—backed by a long-term warranty that drastically cuts future maintenance costs.
Every unit undergoes strict quality assurance before dispatch
Dedicated project managers assist from specification to installation
Comprehensive warranty protects your long-term investment
Selecting the right supplier for life-safety infrastructure is a critical decision that impacts project timelines, budgets, and ultimate building safety. As a dedicated manufacturer, we provide unparalleled value, reliability, and technical expertise to our commercial partners across the globe.
Direct Manufacturer Accountability: By controlling the entire production process, we eliminate middlemen, ensuring strict quality oversight and highly competitive pricing for bulk procurement.
Advanced Production Facilities: Utilizing state-of-the-art automated metalworking and powder-coating lines, we guarantee microscopic precision and flawless finishes on every single door set.
Scalable Capacity: Whether your project requires fifty doors for a boutique hotel or several thousand for a sprawling hospital complex, our robust manufacturing capacity ensures on-time delivery without compromising quality.
Engineering Consultation: Our in-house team of acoustic and fire-safety engineers is available to review your architectural plans, offering tailored advice to optimize your door schedules and ensure absolute code compliance.
Secure Global Logistics: We utilize specialized, heavy-duty export packaging to ensure that your sensitive acoustic and fire-rated products arrive at the construction site in pristine condition, ready for immediate installation.
To further assist architects, contractors, and procurement specialists, we have compiled detailed answers to the most common technical inquiries regarding our FD60 door sets.
Our FD60 door frames are engineered for high versatility and can be securely anchored into a variety of structural openings. They are fully compatible with dense concrete, masonry, brickwork, and specifically designed fire-rated steel stud or timber stud partition walls. We provide specialized anchoring systems and detailed installation schematics tailored to your specific wall composition to ensure the fire rating is maintained across the entire structural assembly.
Yes, the acoustic performance can be precisely tailored. While the standard range is between 33dB and 45dB, we can adjust the density of the internal mineral core and upgrade the perimeter acoustic sealing systems to meet the exact decibel reduction requirements of your project. This is particularly beneficial for specialized environments like recording studios, executive boardrooms, or intensive care units where maximum sound attenuation is critical.
The intumescent smoke and fire seals are embedded discreetly into the door frame or leaf edge. Under normal conditions, they remain inactive and do not interfere with the door's operation. However, when exposed to temperatures exceeding 150°C (302°F), the chemical composition of the seal reacts, expanding up to multiple times its original volume. This rapid expansion completely fills the clearance gap between the door and the frame, creating a rigid, impenetrable barrier against fire, heat, and toxic smoke.

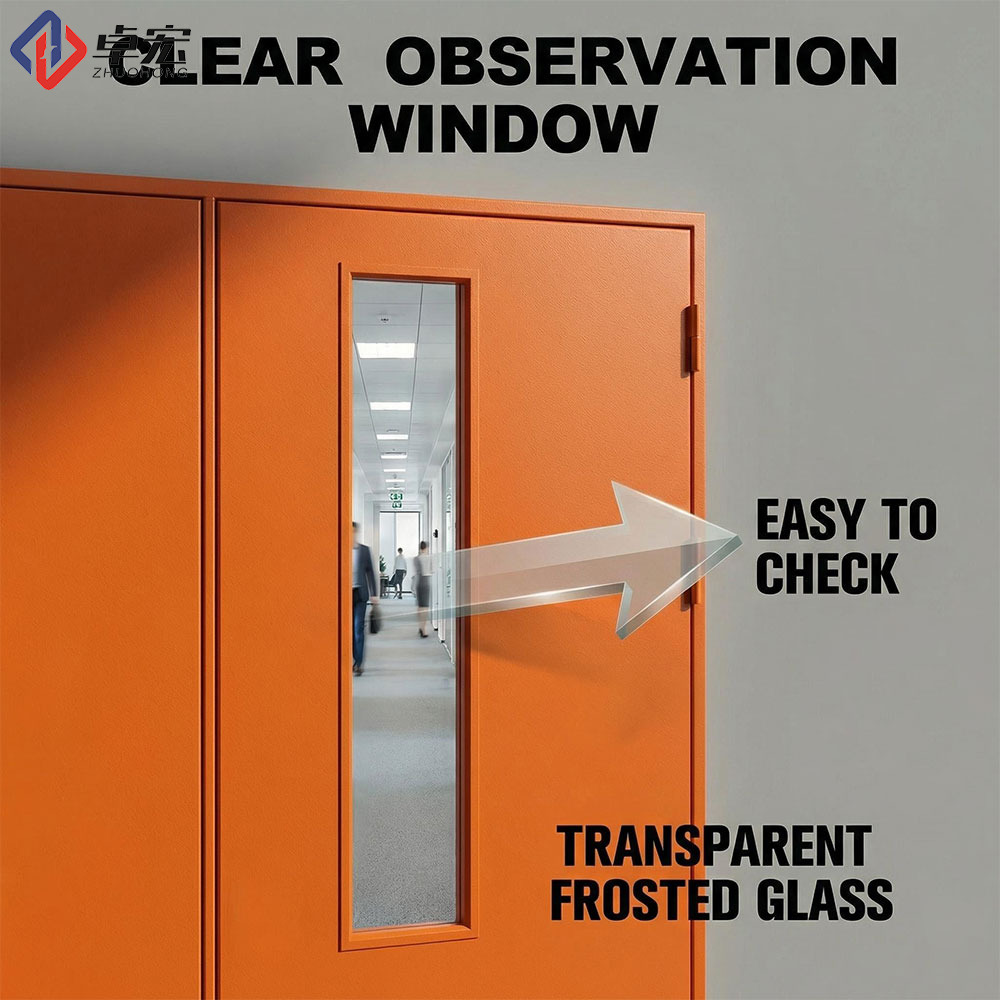

Absolutely. Any vision panel integrated into our FD60 doors uses specialized, multi-layered fire-resistant glass and is secured using certified steel glazing beads and intumescent glazing tape. As long as the total glazed area does not exceed 15% of the total door surface area, the integrity and insulation of the 60-minute fire rating are fully preserved and certified.
Lead times are highly dependent on the scale and customization level of the order. However, for standard FD60 configurations, our streamlined manufacturing process typically allows for order completion within 4 to 6 weeks. For highly customized dimensions, bespoke RAL colors, or exceptionally large volumes, our project managers will provide a detailed, phased delivery schedule during the consultation phase to ensure your construction milestones are met seamlessly.
