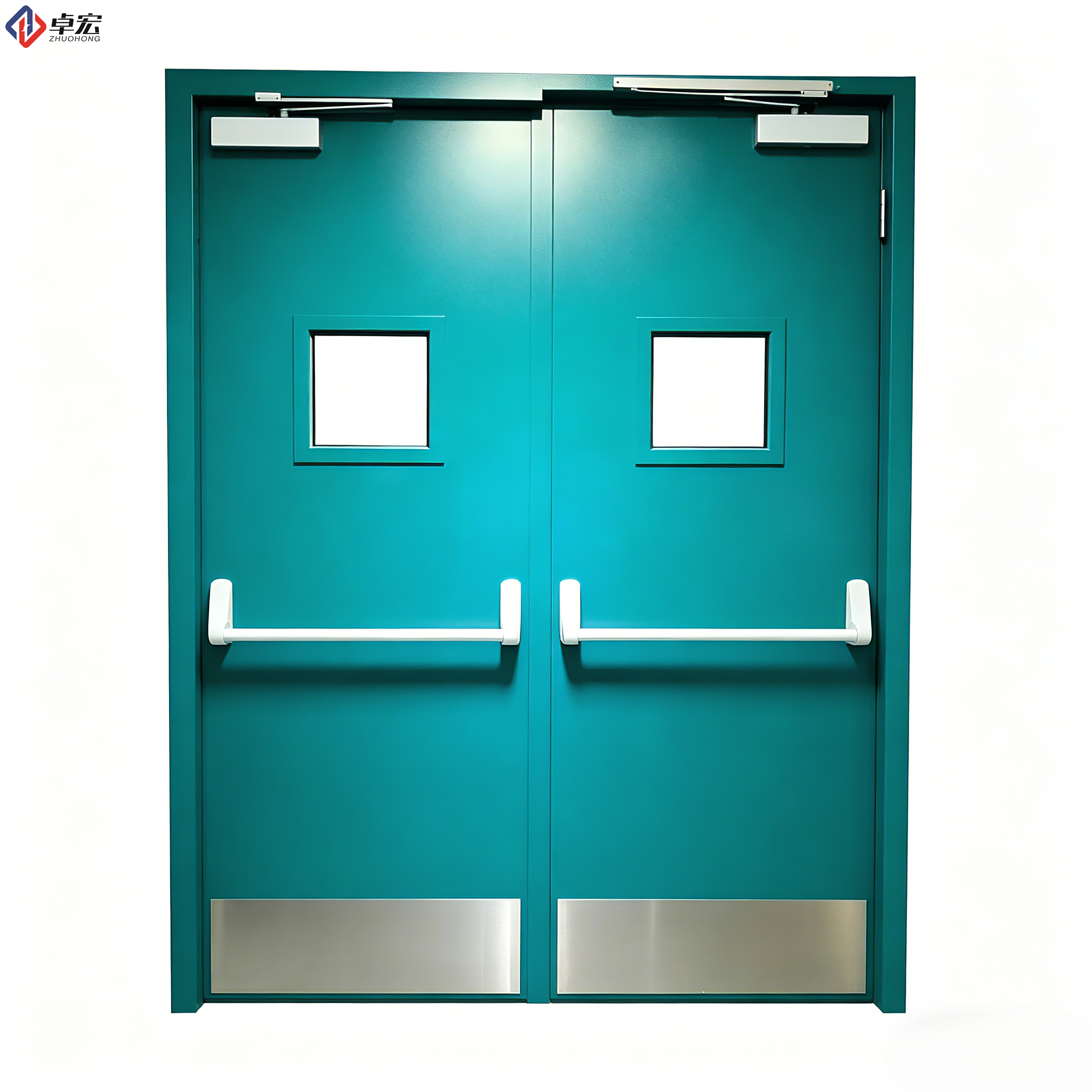

FD60 metal fire door designed for emergency exits, escape routes, and high-traffic building access points
Provides 60-minute fire resistance to support fire separation and safe evacuation planning

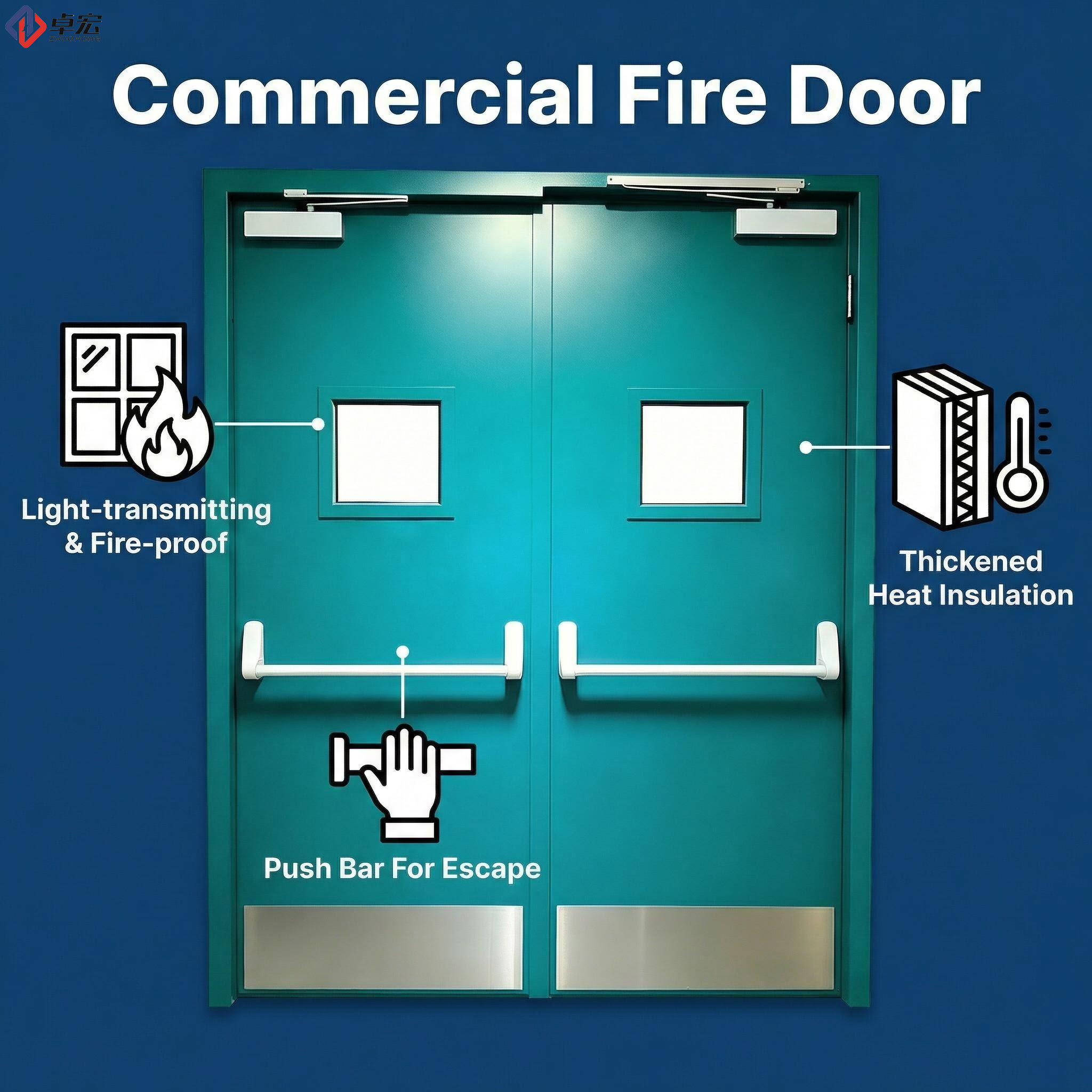

Equipped with panic bar hardware for quick and easy emergency exit operation

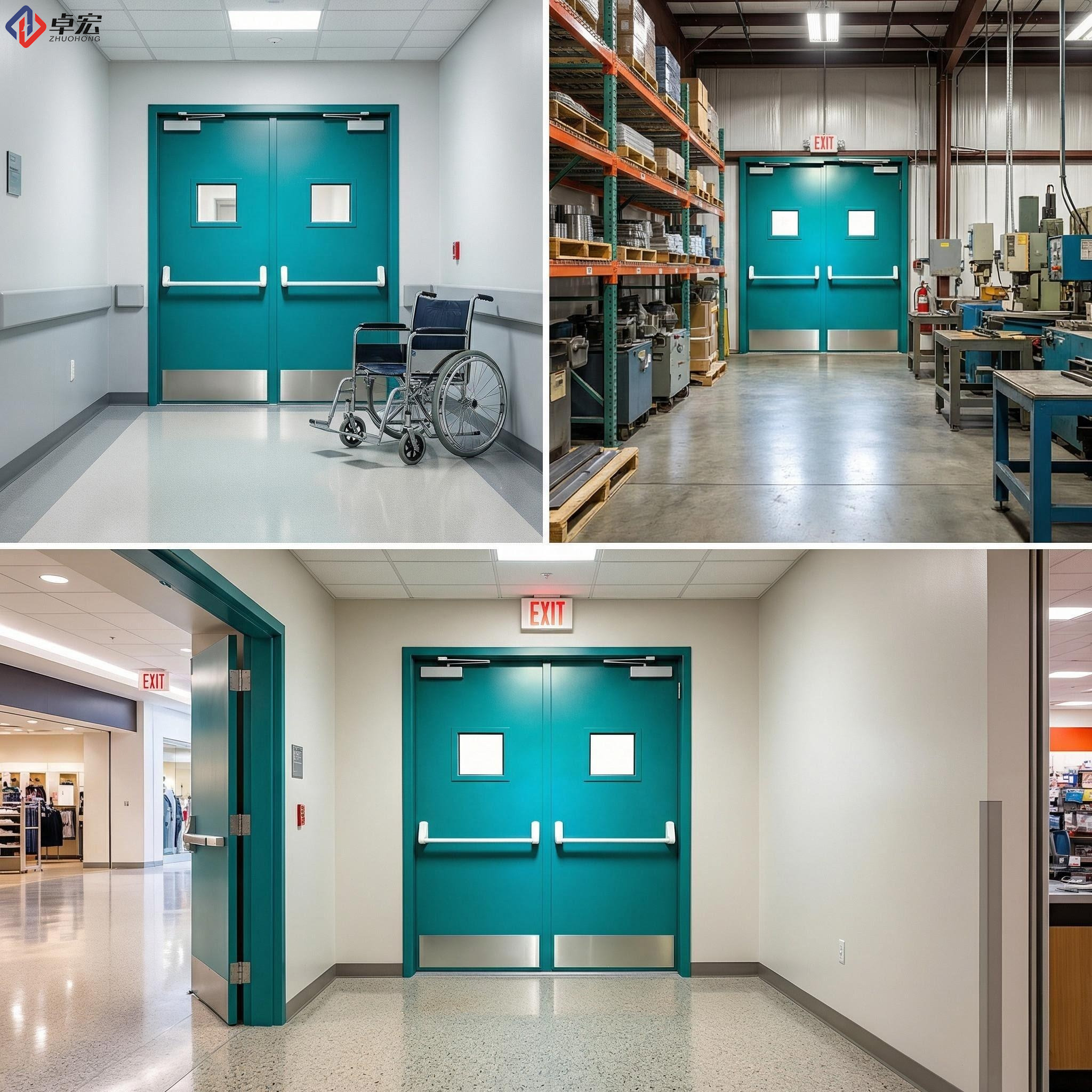

Suitable for office buildings, shopping centers, hotels, hospitals, schools, warehouses, and public facilities
Manufactured with galvanized steel or cold-rolled steel for stable strength and long-term durability

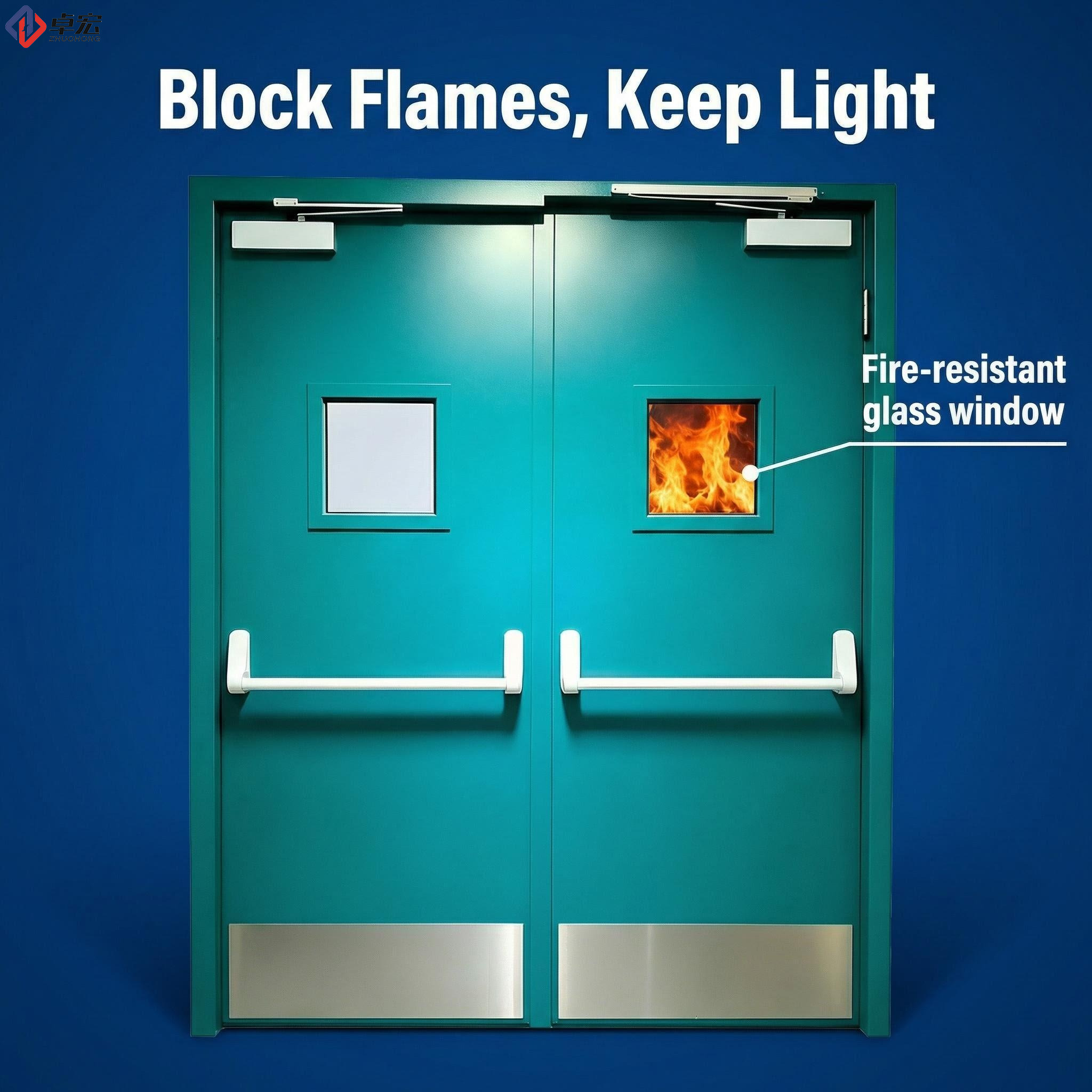

Fire-resistant core and intumescent strips help slow the spread of flames, heat, and smoke
Door closer and fire hinges support reliable closing after daily or emergency use
Smoke seal and threshold seal options are available for improved fire and smoke control
Powder-coated or painted surface finish supports corrosion resistance and long-term building use
Custom size, frame type, opening direction, hardware layout, and surface color are available
Suitable for contractors, developers, door distributors, and commercial building procurement teams
Door schedule, exit width, panic hardware type, frame detail, and project standard can be confirmed before production
Item | Specification |
|---|---|
Product Name | FD60 Metal Fire Door with Panic Bar for Emergency Exits |
Fire Rating | FD60 / 60 Minutes |
Door Type | Single Leaf or Double Leaf Metal Fire Door |
Application | Emergency Exits, Escape Routes, Stairwell Exits, Commercial Corridors, Public Building Exits |
Door Leaf Material | Galvanized Steel / Cold-Rolled Steel |
Core Material | Fire-Resistant Core, such as Perlite Board, Mineral Wool, or Other Approved Core Options |
Door Leaf Thickness | 45mm - 55mm, customizable by project requirement |
Steel Sheet Thickness | 0.8mm - 1.2mm Door Leaf / 1.2mm - 1.5mm Door Frame, customizable |
Standard Size | 900mm x 2100mm / 1000mm x 2100mm, customizable according to door schedule |
Frame Type | Steel Frame / Welded Frame / Knock-Down Frame / Customized Frame |
Surface Finish | Powder Coating, Primer Finish, Painted Finish, or Customized RAL Color |
Sealing System | Intumescent Strip, Smoke Seal, Optional Threshold Seal or Acoustic Seal |
Panic Hardware | Panic Push Bar / Exit Device / Emergency Escape Hardware |
Hardware Options | Panic Bar, Fire-Rated Lock, Door Closer, Fire Hinges, Lever Handle, Kick Plate, Door Stopper |
Opening Direction | Left Hand / Right Hand, Usually Outward Opening for Emergency Exit Use |
Color Options | White, Grey, Black, Red, Blue, or Customized RAL Color |
Suitable Buyers | Contractors, Developers, Door Distributors, Project Buyers, Commercial Building Procurement Teams |
Order Type | Bulk Order / Project Supply / OEM / ODM |
Standards | WH, EN, UL 10C, GB, or Other Project-Specified Standards Available Upon Confirmation |

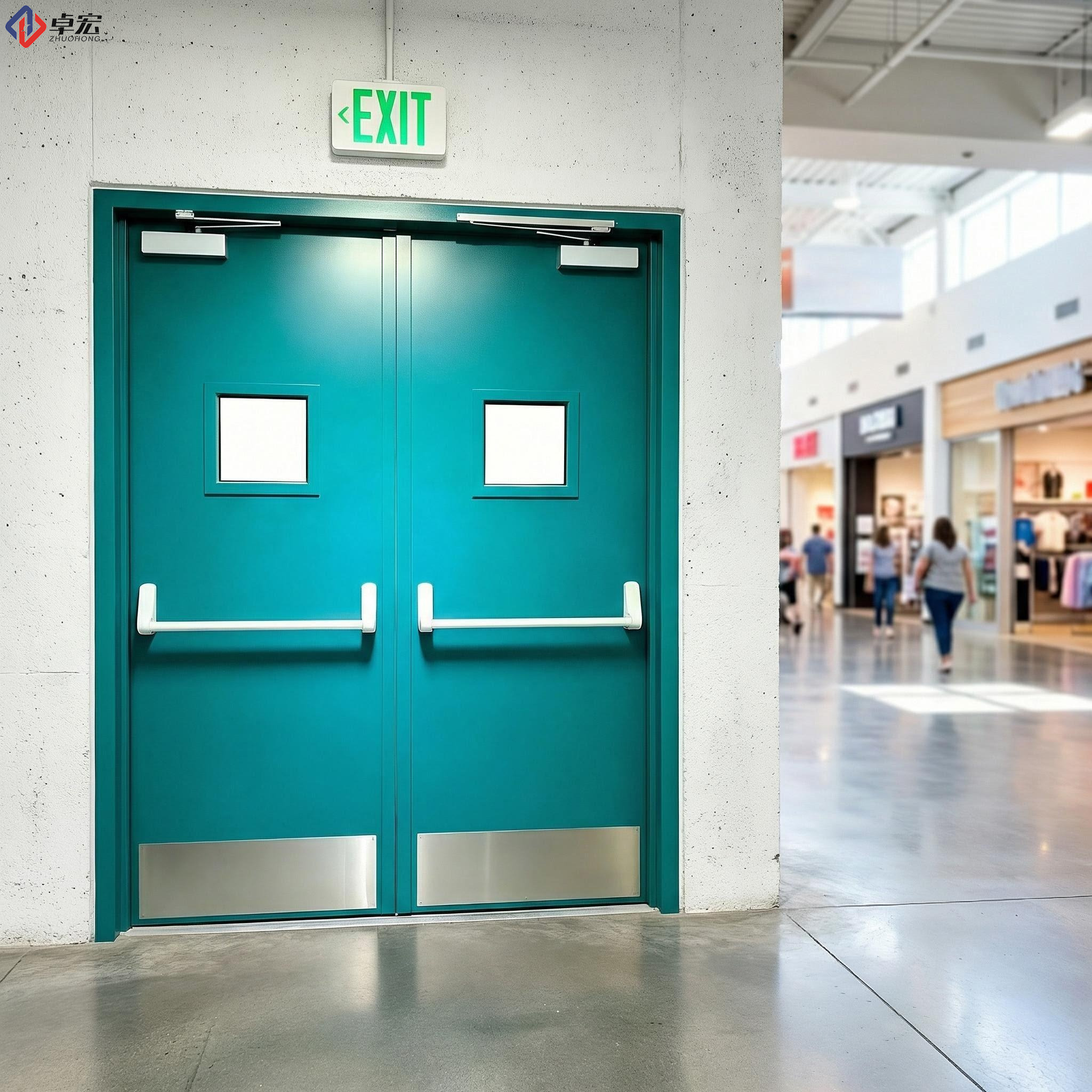

Emergency exit doors are important safety components in commercial and public buildings. They need to support fire separation while allowing people to leave the building quickly during an emergency. In many projects, these doors are installed at stairwell exits, corridor exits, service exits, warehouse exits, and other evacuation route access points.
The FD60 Metal Fire Door with Panic Bar for Emergency Exits is designed for building areas that require 60-minute fire resistance and reliable emergency escape function. During a fire situation, the fire-resistant core, intumescent strips, and sealing system help slow the spread of flames, heat, and smoke between different building zones.
For contractors and project buyers, this type of door is not only a fire-rated product. It also needs to match the evacuation route design, clear opening width, panic hardware requirement, frame installation detail, and local project standard.
The panic bar is a key feature of this product. In emergency exit areas, people may need to leave quickly, and the door should be easy to open from the inside without complicated lock operation. A panic push bar allows users to push the bar and open the door quickly in an emergency.
This makes the door suitable for high-traffic or public-use buildings such as office towers, shopping centers, hospitals, schools, hotels, factories, warehouses, and transport facilities. Depending on the project requirement, the door can be supplied with panic push bar, exit device, fire-rated lock, door closer, fire hinges, lever handle, kick plate, and smoke seal.
Before production, the panic hardware type, installation height, opening direction, lock function, and door closer position should be confirmed clearly. This helps reduce site modification and supports smoother installation.
Emergency exit doors are often used in demanding building environments. They may be opened frequently during daily use, building maintenance, emergency drills, and evacuation situations. Because of this, the door structure must be stable, durable, and compatible with fire-rated hardware.
This FD60 metal fire door is manufactured with galvanized steel or cold-rolled steel. The reinforced door leaf structure and fire-resistant core help improve long-term performance. The surface can be finished with powder coating, primer finish, painted finish, or customized RAL color according to the project design.
For projects that require better smoke control, smoke seals and threshold seals can be added. For areas exposed to frequent movement or impact, kick plates and heavy-duty hinges can also be selected to improve daily durability.
Different emergency exit locations may require different door sizes, frame types, opening directions, hardware configurations, and surface colors. This product can be customized according to the project door schedule and construction drawings.
Available options include single leaf or double leaf structure, welded frame or knock-down frame, outward opening direction, panic hardware layout, fire-rated lock configuration, smoke seal system, and customized color finish. For bulk project orders, confirming these details before production helps reduce installation mistakes and delivery delays.
This FD60 metal fire door is suitable for contractors, developers, distributors, and commercial building procurement teams working on office buildings, hotels, hospitals, schools, shopping centers, warehouses, factories, and public facilities.
We deeply understand the logistical challenges associated with large-scale international procurement. Our optimized knock-down (KD) frame packaging significantly increases shipping container load capacity, effectively driving down your ocean freight costs. Utilizing multi-layered protective wrapping and reinforced transit pallets, we guarantee that your volume orders arrive at the destination site in pristine, damage-free condition, ready for immediate deployment.
Selecting the right manufacturing partner is absolutely crucial for the success of your large-scale construction and commercial development projects. We do more than just supply doors; we provide comprehensive, engineered safety solutions designed to elevate your operational efficiency and protect your capital investments.
Our state-of-the-art production facilities leverage automated precision engineering, ensuring that every single unit in a high-volume order maintains the exact same flawless standard. From the initial raw material selection to the final rigorous quality assurance check, our processes are designed to deliver uncompromising reliability and excellence.
Direct Manufacturer Advantage: By eliminating intermediaries, we provide highly competitive pricing structures for volume procurement, maximizing your project's overall return on investment.
Dedicated Project Support: Our team of technical specialists works closely with your architects and contractors to provide tailored CAD drawings, detailed hardware scheduling, and expert compliance consultation.
Reliable Global Fulfillment: With streamlined production cycles and robust international logistical networks, we ensure your materials are delivered exactly when your construction timeline demands them.
Unwavering Quality Control: Every door undergoes rigorous acoustic, thermal, and mechanical testing before leaving our facility, guaranteeing out-of-the-box perfection and immediate operational readiness.
Yes. This FD60 metal fire door is designed for emergency exits, escape routes, stairwell exits, corridor exits, and public building exit areas. It provides 60-minute fire resistance and supports safe evacuation planning.
The panic bar allows people to open the door quickly from the inside by pushing the bar. It is commonly used for emergency exits because it helps improve evacuation efficiency and reduces complicated operation during urgent situations.
Yes. The opening direction can be customized as left hand, right hand, inward opening, or outward opening. For emergency exit applications, outward opening is commonly required, but the final direction should be confirmed according to project drawings and local building requirements.
Common hardware options include panic push bar, fire-rated lock, door closer, fire hinges, lever handle, kick plate, door stopper, smoke seal, and optional threshold seal. Hardware preparation can be completed before production according to your hardware specification or template.
Before ordering, please confirm the fire rating, door size, wall opening size, frame type, opening direction, panic bar type, hardware layout, surface finish, sealing requirement, and project standard. These details help reduce installation mistakes and improve project delivery efficiency.
The product can be prepared according to project requirements. Available standard options may include WH, EN, UL 10C, GB, or other project-specified standards. Please confirm the required standard before ordering so the technical documents and product configuration can match the project needs.
