FD60 steel fire door designed for stairwell access, fire escape routes, and vertical circulation areas
Provides 60-minute fire resistance to support fire separation between floors and stairwell zones
Suitable for commercial buildings, residential towers, hotels, hospitals, schools, offices, and public facilities
Steel door structure helps maintain stable performance in high-traffic stairwell entrance areas
Fire-resistant core and intumescent strips help slow the spread of flames, heat, and smoke
Designed for areas where reliable self-closing, durable hardware, and accurate frame fitting are required
Compatible with fire-rated locks, panic push bars, door closers, fire hinges, handles, and smoke seals
Powder-coated or painted surface finish supports corrosion resistance and long-term building use
Custom size, frame type, opening direction, wall thickness, and hardware preparation are available
Suitable for contractors, developers, distributors, and commercial building procurement teams
Door schedule, stairwell opening size, frame detail, and hardware layout can be confirmed before production
Available for bulk project supply, OEM orders, and customized building door packages
Item | Specification |
|---|---|
Product Name | FD60 Steel Fire Door for Stairwell Access |
Fire Rating | FD60 / 60 Minutes |
Door Type | Single Leaf or Double Leaf Steel Fire Door |
Application | Stairwell Access, Fire Escape Routes, Emergency Exits, Commercial Corridors, Service Areas |
Door Leaf Material | Galvanized Steel / Cold-Rolled Steel |
Core Material | Fire-Resistant Core, such as Perlite Board, Mineral Wool, or Other Approved Core Options |
Door Leaf Thickness | 45mm - 55mm, customizable by project requirement |
Steel Sheet Thickness | 0.8mm - 1.2mm Door Leaf / 1.2mm - 1.5mm Door Frame, customizable |
Standard Size | 900mm x 2100mm / 1000mm x 2100mm, customizable according to door schedule |
Frame Type | Steel Frame / Welded Frame / Knock-Down Frame / Customized Frame |
Surface Finish | Powder Coating, Primer Finish, Painted Finish, or Customized RAL Color |
Sealing System | Intumescent Strip, Smoke Seal, Optional Acoustic Seal or Threshold Seal |
Hardware Options | Fire-Rated Lock, Panic Push Bar, Door Closer, Fire Hinges, Lever Handle, Kick Plate, Door Stopper |
Opening Direction | Left Hand / Right Hand, Inward / Outward Opening |
Color Options | White, Grey, Black, Red, Blue, or Customized RAL Color |
Suitable Buyers | Contractors, Developers, Door Distributors, Project Buyers, Commercial Building Procurement Teams |
Order Type | Bulk Order / Project Supply / OEM / ODM |
Standards | BS 476, EN 1634-1, UL 10C, NFPA 80, or Other Project-Specified Standards Available Upon Confirmation |
Stairwells are important fire escape and vertical circulation areas in many buildings. In commercial, residential, and public projects, stairwell access doors need to help separate fire zones while allowing safe movement between floors.
The FD60 Steel Fire Door for Stairwell Access is designed for stairwell entrances, fire escape routes, emergency exits, and service areas that require 60-minute fire resistance. It helps slow the spread of flames, heat, and smoke between stairwell zones and adjacent building spaces during a fire situation.
For contractors and project buyers, stairwell fire doors are not only a product item. They are connected with evacuation planning, door closing performance, frame fitting, hardware compatibility, and project compliance requirements. A reliable FD60 stairwell fire door can help improve the overall fire safety arrangement of the building.
Stairwell doors are often used frequently by occupants, maintenance teams, and emergency personnel. Because of this, the door needs to be strong enough for daily operation while still meeting fire-rated performance requirements.
This FD60 steel fire door is manufactured with galvanized steel or cold-rolled steel, combined with a fire-resistant core and reinforced internal structure. The intumescent strip helps seal the gap between the door leaf and frame under high temperature. Smoke seal options can also be added when the project requires better smoke control.
The surface can be finished with powder coating, primer, painted finish, or customized RAL color. For stairwell access areas, a durable surface finish helps reduce wear caused by frequent use and supports long-term building maintenance.

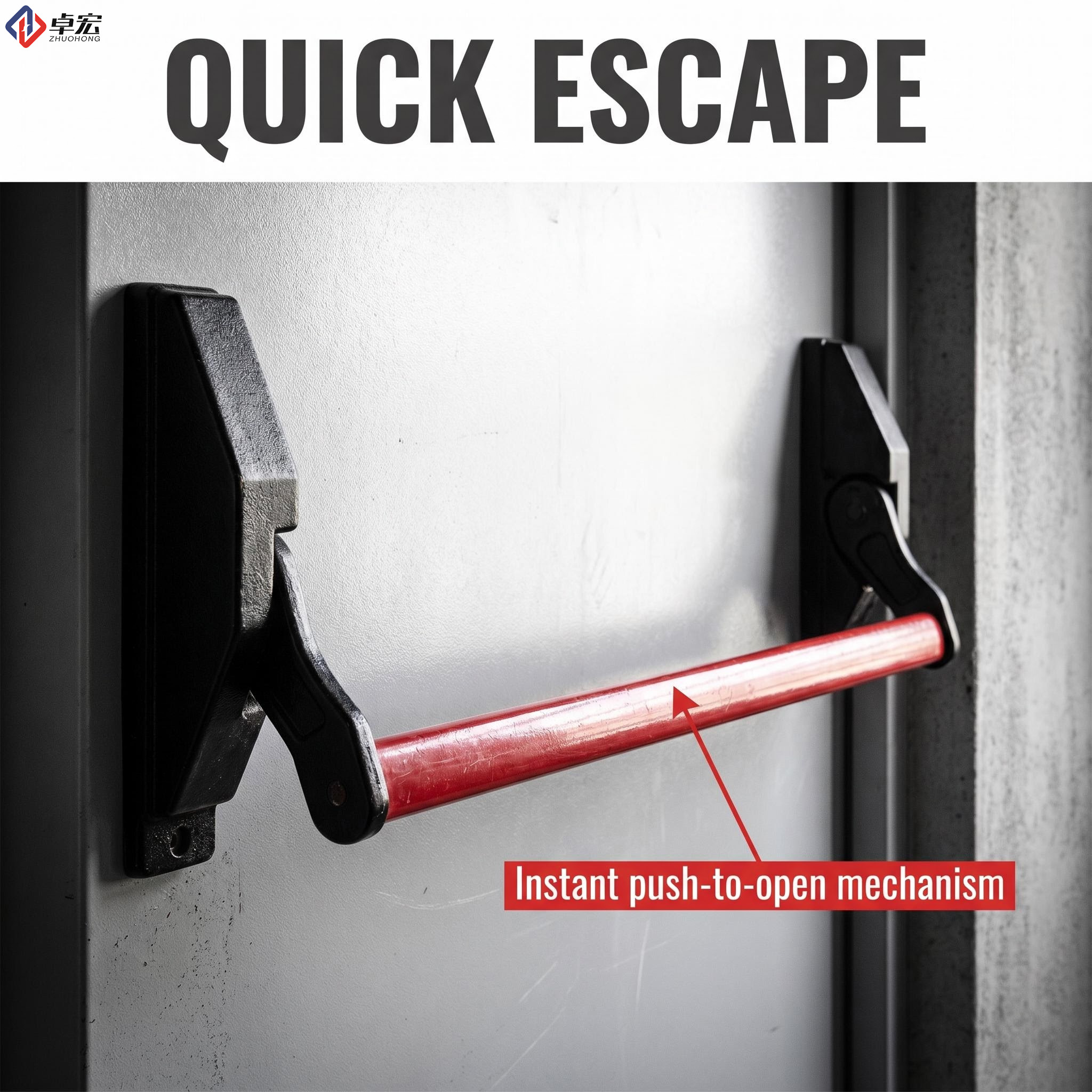

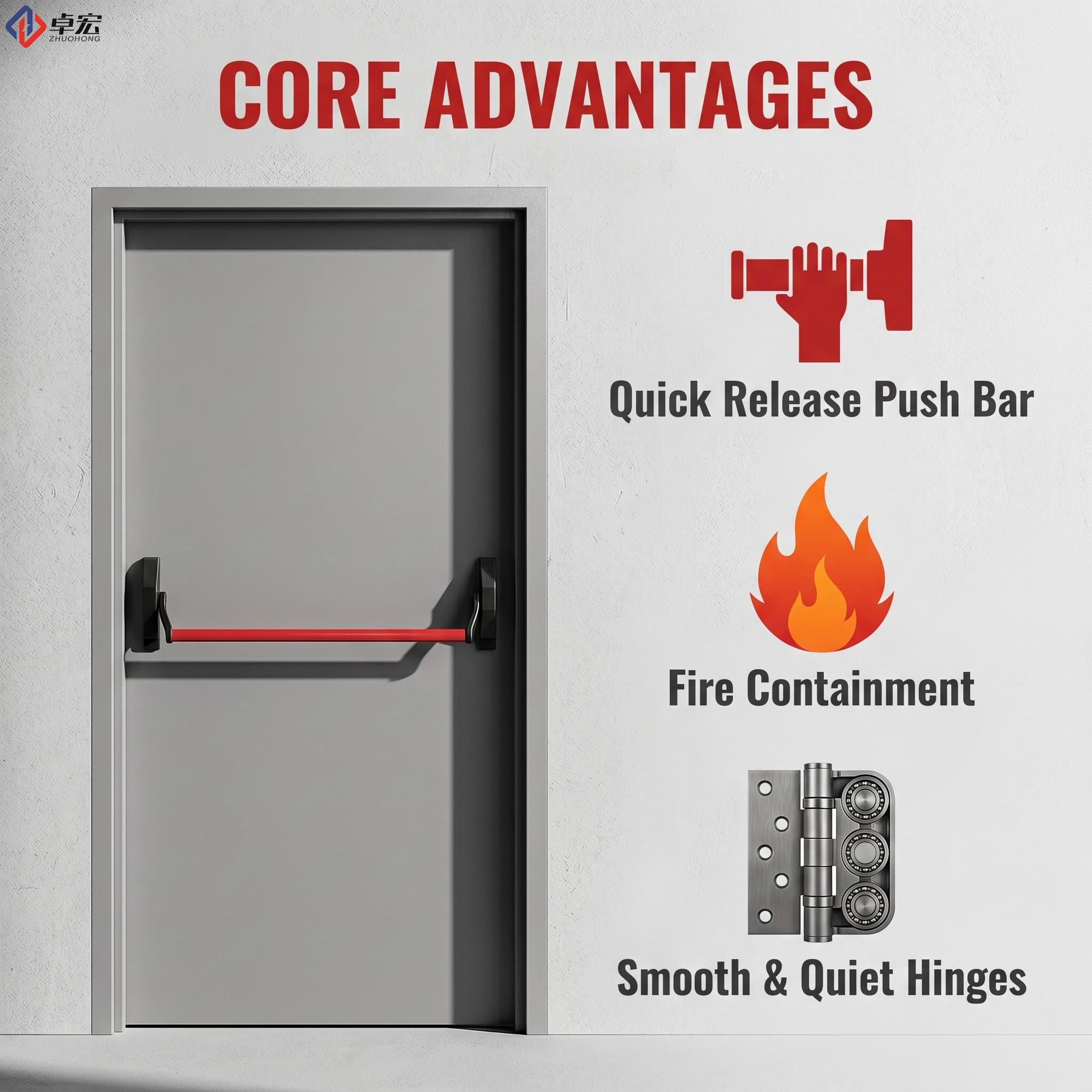

For stairwell access, hardware selection is very important. A fire door may need a door closer for self-closing performance, fire-rated hinges for stable support, a panic push bar for emergency escape, or a lockset depending on the building function.
This product can be supplied with fire-rated locks, panic hardware, door closers, fire hinges, lever handles, kick plates, smoke seals, and optional threshold seals. The door frame can be supplied as a welded frame, knock-down frame, or customized frame based on wall structure and installation method.
Before production, it is important to confirm the door schedule, wall opening size, wall thickness, opening direction, hardware position, frame detail, and fire rating requirement. These details help reduce installation mistakes and avoid unnecessary adjustment work on site.

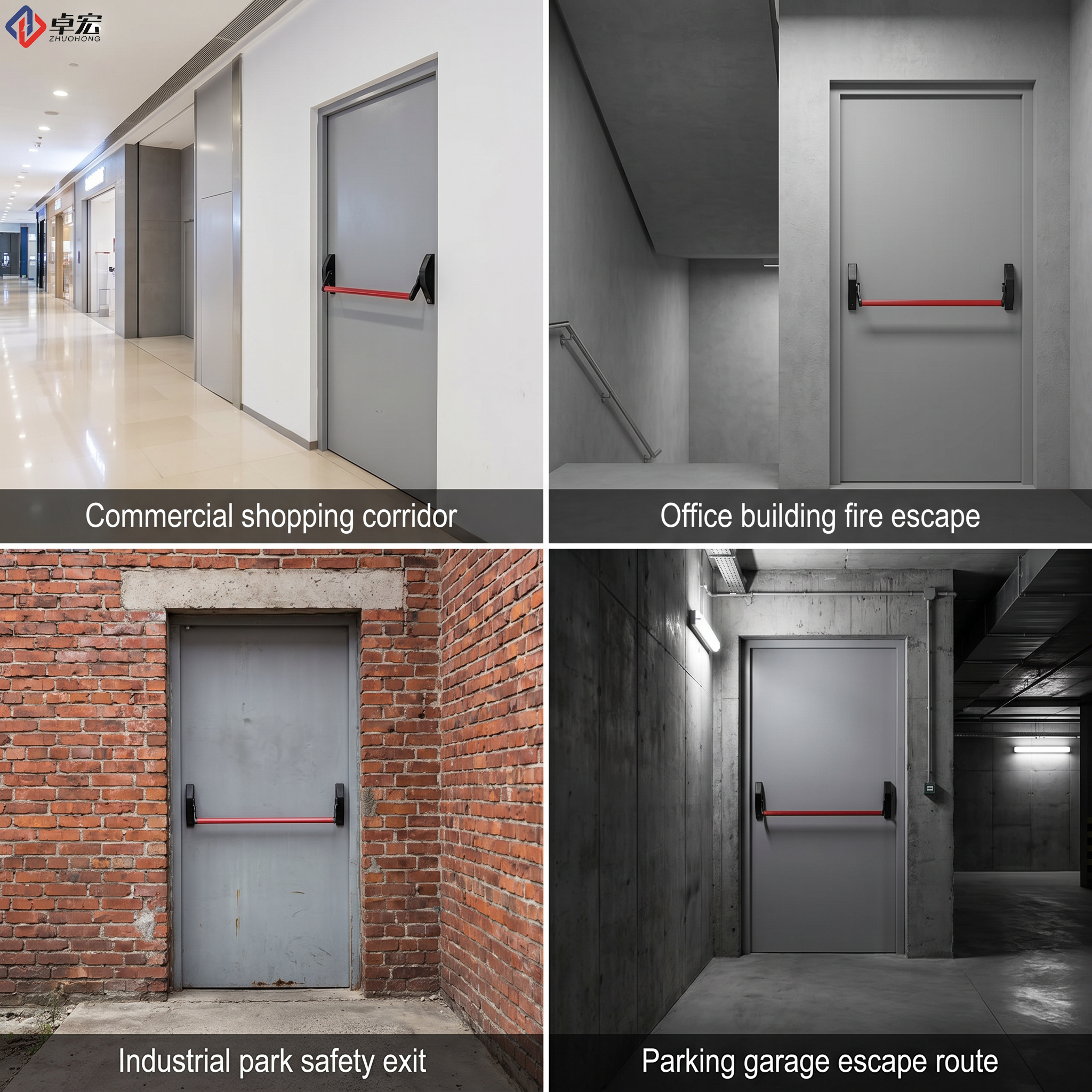

The FD60 Steel Fire Door for Stairwell Access is suitable for office buildings, hotels, hospitals, schools, apartment towers, shopping centers, warehouses, and public facilities. It can be used in new construction projects, renovation projects, and large-scale commercial building procurement.
For contractors and developers, accurate specification confirmation before production can support smoother installation. For distributors, this product can be supplied as part of a fire-rated door package for commercial and residential projects.
For bulk orders, buyers can confirm different door sizes, fire ratings, frame types, hardware sets, color requirements, packing method, and delivery sequence before production. This helps improve order accuracy and supports more stable project delivery.
We deeply understand the logistical challenges associated with large-scale international procurement. Our optimized knock-down (KD) frame packaging significantly increases shipping container load capacity, effectively driving down your ocean freight costs. Utilizing multi-layered protective wrapping and reinforced transit pallets, we guarantee that your volume orders arrive at the destination site in pristine, damage-free condition, ready for immediate deployment.
Selecting the right manufacturing partner is absolutely crucial for the success of your large-scale construction and commercial development projects. We do more than just supply doors; we provide comprehensive, engineered safety solutions designed to elevate your operational efficiency and protect your capital investments.
Our state-of-the-art production facilities leverage automated precision engineering, ensuring that every single unit in a high-volume order maintains the exact same flawless standard. From the initial raw material selection to the final rigorous quality assurance check, our processes are designed to deliver uncompromising reliability and excellence.
Direct Manufacturer Advantage: By eliminating intermediaries, we provide highly competitive pricing structures for volume procurement, maximizing your project's overall return on investment.
Dedicated Project Support: Our team of technical specialists works closely with your architects and contractors to provide tailored CAD drawings, detailed hardware scheduling, and expert compliance consultation.
Reliable Global Fulfillment: With streamlined production cycles and robust international logistical networks, we ensure your materials are delivered exactly when your construction timeline demands them.
Unwavering Quality Control: Every door undergoes rigorous acoustic, thermal, and mechanical testing before leaving our facility, guaranteeing out-of-the-box perfection and immediate operational readiness.
Yes. This FD60 steel fire door is designed for stairwell access, fire escape routes, emergency exits, and vertical circulation areas. It provides 60-minute fire resistance and helps support fire separation between stairwell zones and other building areas.
Yes. This stairwell fire door can be supplied with panic push bars, fire-rated locks, door closers, fire hinges, lever handles, kick plates, and smoke seals. The hardware configuration can be adjusted according to the building function and project requirements.
Yes. The door size, frame type, opening direction, wall thickness, surface finish, and hardware preparation can be customized according to your project drawings or door schedule. Welded frames, knock-down frames, and customized frame solutions are available.
Before production, we suggest confirming the fire rating, door size, wall opening size, wall thickness, frame type, opening direction, hardware position, surface finish, smoke seal requirement, and project standard. This helps reduce installation errors on site.
Yes. This product is suitable for office buildings, hotels, hospitals, schools, residential towers, shopping centers, warehouses, and public facilities. It can support bulk project supply for contractors, developers, distributors, and commercial building procurement teams.
Yes. We can provide product specifications, technical drawings, packing details, and related fire door documents according to project requirements. If certification documents are needed, please confirm the required standard before ordering, such as BS, EN, UL, or local project standards.
